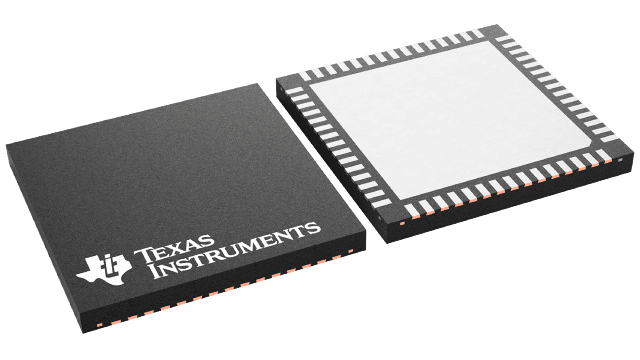

ADC11DV200CISQX/NOPB Texas Instruments - Yeehing Electronics

Dual-Channel, 11-Bit, 200MSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	90.411
100 — 249	87.692
250 — 999	73.008
1,000 +	47.58

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADC11DV200
Mounting Style	SMD/SMT
Package / Case	WQFN-60
Resolution	11 bit
Number of Channels	2 Channel
Sampling Rate	200 MS/s
Input Type	Differential
Interface Type	Parallel
Architecture	Pipeline
Reference Type	External, Internal
Analog Supply Voltage	1.8 V
Digital Supply Voltage	1.8 V
SNR - Signal to Noise Ratio	63.8 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Low Power
Height	0.8 mm
Input Voltage	1.5 V
Length	9 mm
Number of Converters	2 Converter
Output Type	LVDS
Power Consumption	473 mW
Type	S/H ADC
Width	9 mm
Brand	Texas Instruments
Development Kit	ADC11DV200EB/NOPB
DNL - Differential Nonlinearity	+/- 0.32 LSB
ENOB - Effective Number of Bits	10.1 Bit
Gain Error	3 % FSR
INL - Integral Nonlinearity	1.5 LSB
Moisture Sensitive	Yes
Number of ADC Inputs	2 Input
Operating Supply Voltage	1.8 V
Product Type	ADCs - Analog to Digital Converters
Sample and Hold	Yes
SFDR - Spurious Free Dynamic Range	82 dB
SINAD - Signal to Noise and Distortion Ratio	62.3 dB
Factory Pack Quantity	2000
Subcategory	Data Converter ICs

For more information, please refer to datasheet

Documents

ADC11DV200CISQX/NOPB Datasheet

More Information

The ADC11DV200 is a monolithic analog-to-digital converter capable of converting two analog input signals into 11-bit digital words at rates up to 200 Mega Samples Per Second (MSPS). The digital output mode is selectable and can be either differential LVDS or CMOS signals. This converter uses a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize die size and power consumption while providing excellent dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 900MHz. Fabricated in core CMOS process, the ADC11DV200 may be operated from a single 1.8V power supply. The ADC11DV200 achieves approximately 10.06 effective bits at Nyquist and consumes just 280mW at 170MSPS in CMOS mode 450mW at 200MSPS in LVDS mode. The power consumption can be scaled down further by reducing sampling rates.
