Texas Instruments
ADC12081CIVTX/NOPB
ADC12081CIVTX/NOPB
Regular price
$3.56 USD
Regular price
Sale price
$3.56 USD
Unit price
per
Couldn't load pickup availability

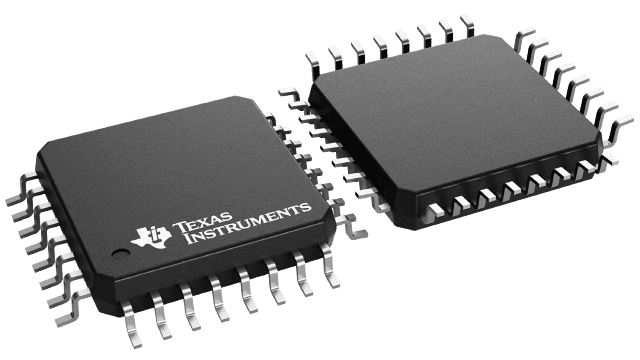

ADC12081CIVTX/NOPB Texas Instruments - Yeehing Electronics
12-Bit, 5 MHz Self-Calibrating, Pipelined A/D Converter with Internal Sample & Hold
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.351 |
| 100 — 249 | 7.623 |
| 250 — 999 | 5.992 |
| 1,000 + | 3.56 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADC12081 |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-32 |
| Resolution | 12 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 5 MS/s |
| Input Type | Single-Ended |
| Interface Type | Parallel |
| Architecture | Pipeline |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 4.75 V to 5.25 V |
| SNR - Signal to Noise Ratio | 68 dB |
| Minimum Operating Temperature | - 20 C |
| Maximum Operating Temperature | + 75 C |
| Packaging | Reel |
| Height | 1.4 mm |
| Input Voltage | 2 V |
| Length | 7 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 105 mW |
| Type | S/H ADC |
| Width | 7 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | 0.75 LSB |
| Gain Error | 0.1 % FSR |
| INL - Integral Nonlinearity | 1.7 LSB |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 1 Input |
| Operating Supply Voltage | 5 V |
| Product Type | ADCs - Analog to Digital Converters |
| Sample and Hold | Yes |
| SINAD - Signal to Noise and Distortion Ratio | 67.6 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.027302 oz |
For more information, please refer to datasheet
Documents
| ADC12081CIVTX/NOPB Datasheet |
More Information
The ADC12081 is a monolithic CMOS analog-to-digital converter capable of converting analog input signals into 12-bit digital words at 5 megasamples per second (MSPS). The ADC12081 utilizes an innovative pipeline architecture to minimize die size and power consumption. The ADC12081 uses self-calibration and error correction to maintain accuracy and performance over temperature.
