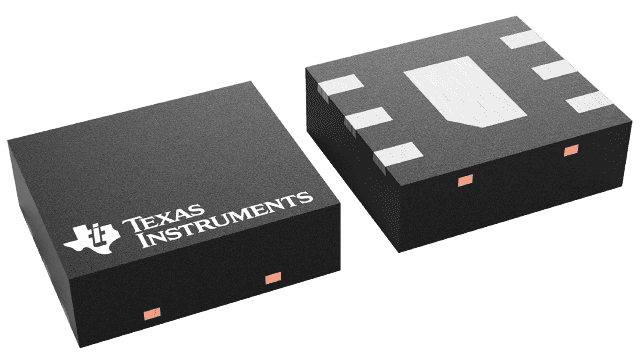

ADC121S021CISDX/NOPB Texas Instruments - Yeehing Electronics

Single Channel, 50 to 200 ksps, 12-Bit A/D Converter

Pricing (USD)

Quantity	Unit Price
1 — 99	1.725
100 — 249	1.425
250 — 999	1.023
1,000 +	0.54

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADC121S021
Mounting Style	SMD/SMT
Package / Case	WSON-6
Resolution	12 bit
Number of Channels	1 Channel
Sampling Rate	200 kS/s
Input Type	Single-Ended
Interface Type	3-Wire, SPI
Architecture	SAR
Reference Type	Supply
Analog Supply Voltage	2.7 V to 5.25 V
Digital Supply Voltage	2.7 V to 5.25 V
SNR - Signal to Noise Ratio	72.3 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Small Size
Height	0.8 mm
Input Voltage	5.25 V
Length	2.2 mm
Number of Converters	1 Converter
Power Consumption	1.5 mW
Type	S/H ADC
Width	2.5 mm
Brand	Texas Instruments
Development Kit	SP1202S01RB-PCB/NOPB
DNL - Differential Nonlinearity	- 0.8 LSB to + 1 LSB
Gain Error	1.5 LSB
INL - Integral Nonlinearity	1 LSB
Number of ADC Inputs	1 Input
Operating Supply Voltage	3.3 V, 5 V
Product Type	ADCs - Analog to Digital Converters
Sample and Hold	Yes
SINAD - Signal to Noise and Distortion Ratio	72 dB
Factory Pack Quantity	4500
Subcategory	Data Converter ICs
Unit Weight	0.000342 oz

For more information, please refer to datasheet

Documents

ADC121S021CISDX/NOPB Datasheet

More Information

The ADC121S021 device is a low-power, single-channel CMOS 12-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC121S021 is fully specified over a sample rate range of 50 ksps to 200 ksps. The converter is based upon a successive-approximation register architecture with an internal track-and-hold circuit.
