Texas Instruments

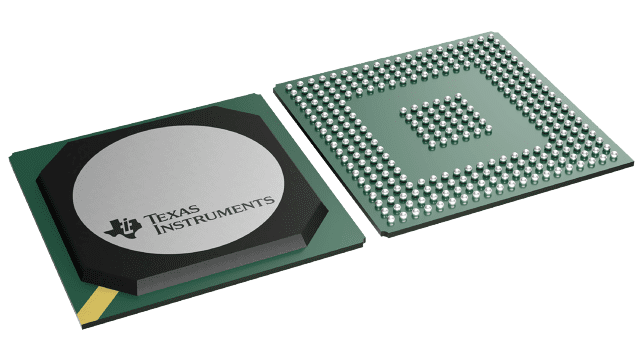

ADC12D1000CIUT/NOPB
ADC12D1000CIUT/NOPB
Regular price
$743.60 USD
Regular price
Sale price
$743.60 USD
Unit price
per
Couldn't load pickup availability
ADC12D1000CIUT/NOPB Texas Instruments - Yeehing Electronics
12-Bit, Dual 1.0-GSPS or Single 2.0-GSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 929.502 |
| 100 — 249 | 855.732 |
| 250 — 999 | 737.7 |
| 1,000 + | 743.60 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS54T01 |
| Mounting Style | SMD/SMT |
| Package / Case | NFBGA-196 |
| Resolution | 12 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 750 MS/s |
| Interface Type | Serial |
| Architecture | Pipeline |
| Analog Supply Voltage | 3.15 V to 3.45 V |
| Digital Supply Voltage | 1.7 V to 1.9 V |
| SNR - Signal to Noise Ratio | 61.2 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Features | Decimating Filter, Differential Inputs, High Dynamic Range, Nap Mode, Out of Range Indicator, Power |
| Number of Converters | 1 Converter |
| Output Type | DDR, LVDS |
| Power Consumption | 1.2 W |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 1 Input |
| Operating Supply Voltage | 3.15 V to 3.45 V |
| Pd - Power Dissipation | 1.2 W |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 79 dB |
| Factory Pack Quantity | 160 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| ADC12D1000CIUT/NOPB Datasheet |
More Information
The 12-bit, 2.0/3.2 GSPS ADC12D1x00 device is the latest advance in TIs Ultra High-Speed ADC family and builds upon the features, architecture, and functionality of the 10-bit GHz family of ADCs.
