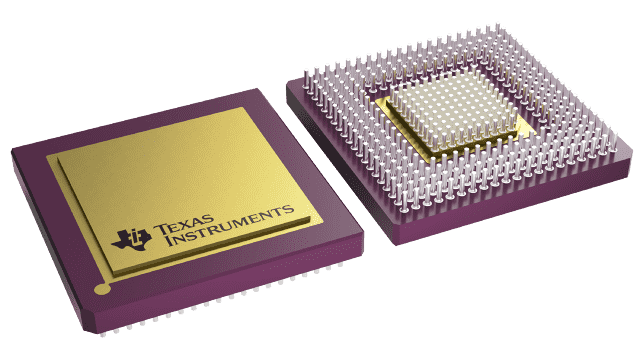

ADC12D1620CCMPR Texas Instruments - Yeehing Electronics
Radiation-hardness-assured (RHA), QMLV, 300-krad, 12-bit, dual 1.6-GSPS or single 3.2-GSPS ADC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 6479.807 |
| 100 — 249 | 6132.675 |
| 250 — 999 | 5785.542 |
| 1,000 + | 4535.86 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| ADC12D1620CCMPR Datasheet |
More Information
The ADC12D1620QML uses a package redesign to achieve better ENOB, SNR, and X-talk compared to the ADC12D1600QML. As is its predecessor, the ADC12D1620QML is a low-power, high-performance CMOS analog-to-digital converter (ADC) that digitizes signals at a 12-bit resolution at sampling rates up to 3.2 GSPS in an interleaved mode. It can also be used as a dual-channel ADC for sampling rates up to 1.6 GSPS. For sampling rates below 800 MHz, there is a low-sampling power-saving mode (LSPSM) that reduces power consumption to less than 1.4 W per channel (typical). The ADC can support conversion rates as low as 200 MSPS.
