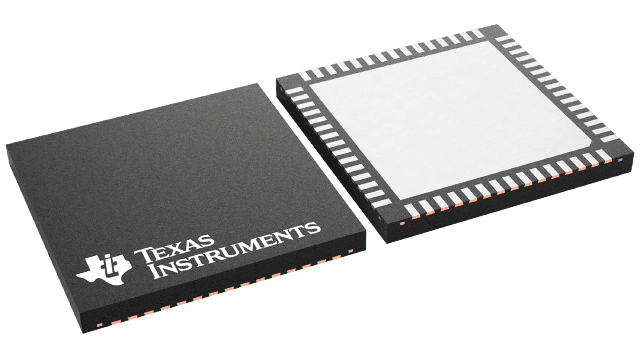

ADC12DC105CISQ/NOPB


YeeHing #: Y004-ADC12DC105CISQ/NOPB
Inventory: 4200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ADC12DC105CISQ/NOPB Texas Instruments - Yeehing Electronics

Dual-Channel, 12-Bit, 105-MSPS, 1.0-GHz Input Bandwidth Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity Unit Price
1 — 99 50.793
100 — 249 45.149
250 — 999 37.115
1,000 + 23.24

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Analog to Digital Converters - ADC
RoHS Y
Series ADC12DC105
Mounting Style SMD/SMT
Package / Case WQFN-60
Resolution 12 bit
Number of Channels 2 Channel
Sampling Rate 105 MS/s
Input Type Differential
Interface Type Parallel
Architecture Pipeline
Reference Type External, Internal
Analog Supply Voltage 2.7 V to 3.6 V
Digital Supply Voltage 2.4 V to 3.6 V
SNR - Signal to Noise Ratio 71 dB
Minimum Operating Temperature - 45 C
Maximum Operating Temperature + 85 C
Packaging Reel
Features Low Power
Height 0.8 mm
Input Voltage 2 V
Length 9 mm
Number of Converters 2 Converter
Power Consumption 800 mW
Type S/H ADC
Width 9 mm
Brand Texas Instruments
Development Kit ADC12DC105LFEB/NOPB
DNL - Differential Nonlinearity +/- 0.2 LSB
ENOB - Effective Number of Bits 11.2 Bit
Gain Error 1 % FSR
INL - Integral Nonlinearity +/- 1.2 LSB
Moisture Sensitive Yes
Number of ADC Inputs 2 Input
Operating Supply Voltage 3.3 V
Pd - Power Dissipation 800 mW
Product Type ADCs - Analog to Digital Converters
Sample and Hold Yes
SFDR - Spurious Free Dynamic Range 83 dB
SINAD - Signal to Noise and Distortion Ratio 69 dB
Factory Pack Quantity 2000
Subcategory Data Converter ICs

For more information, please refer to datasheet

Documents

ADC12DC105CISQ/NOPB Datasheet

More Information

The ADC12DC105 is a high-performance CMOS analog-to-digital converter capable of converting two analog input signals into 12-bit digital words at rates up to 105 Mega Samples Per Second (MSPS). These converters use a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption and the external component count, while providing excellent dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 1 GHz. The ADC12DC080/105 may be operated from a single +3.0V or +3.3V power supply. A power-down feature reduces the power consumption to very low levels while still allowing fast wake-up time to full operation. The differential inputs provide a 2V full scale differential input swing. A stable 1.2V internal voltage reference is provided, or the ADC12DC105 can be operated with an external 1.2V reference. Output data format (offset binary versus 2's complement) and duty cycle stabilizer are pin-selectable. The duty cycle stabilizer maintains performance over a wide range of clock duty cycles.
