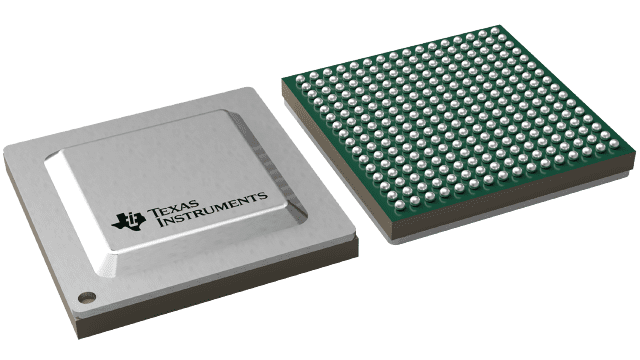

ADC12DL3200ACF


YeeHing #: Y004-ADC12DL3200ACF
Inventory: 8200

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ADC12DL3200ACF Texas Instruments - Yeehing Electronics

12-bit, dual 3.2-GSPS or single 6.4-GSPS, RF-sampling analog-to-digital converter (LVDS interface)

Pricing (USD)

Quantity Unit Price
1 — 99 None
100 — 249 None
250 — 999 None
1,000 + None

The above prices are for reference only.

Specifications

None

For more information, please refer to datasheet

Documents

ADC12DL3200ACF Datasheet

More Information

The ADC12DL3200 is an RF-sampling, giga-sample, analog-to-digital converter (ADC) that can directly sample input frequencies from DC to above 10 GHz. In dual-channel mode, the ADC12DL3200 can sample up to 3200 MSPS and in single-channel mode up to 6400 MSPS. Programmable tradeoffs in channel count (dual-channel mode) and Nyquist bandwidth (single-channel mode) allow development of flexible hardware that meets the needs of both high-channel count or wide instantaneous signal bandwidth applications. Full-power input bandwidth (–3 dB) of 8.0 GHz and a useable frequency range allows direct RF sampling of L-band, S-band, C-band, and X-band for frequency agile systems.
