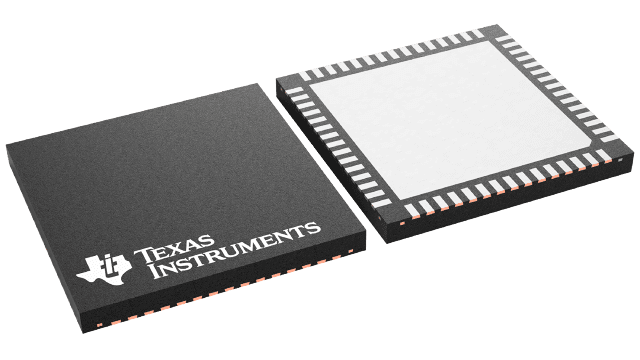

ADC12DS105CISQ/NOPB Texas Instruments - Yeehing Electronics

Dual-Channel, 12-Bit, 105-MSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	43.542
100 — 249	38.704
250 — 999	31.817
1,000 +	19.92

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADC12DS105
Mounting Style	SMD/SMT
Package / Case	WQFN-60
Resolution	12 bit
Number of Channels	2 Channel
Sampling Rate	105 MS/s
Input Type	Differential
Interface Type	Serial
Architecture	Pipeline
Reference Type	External, Internal
Analog Supply Voltage	2.7 V to 3.6 V
Digital Supply Voltage	2.7 V to 3.6 V
SNR - Signal to Noise Ratio	71 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Low Power
Height	0.8 mm
Input Voltage	2 V
Length	9 mm
Number of Converters	2 Converter
Output Type	LVDS
Power Consumption	1 W
Type	S/H ADC
Width	9 mm
Brand	Texas Instruments
DNL - Differential Nonlinearity	+/- 0.3 LSB
ENOB - Effective Number of Bits	11 Bit
Gain Error	1 % FSR
INL - Integral Nonlinearity	2 LSB
Moisture Sensitive	Yes
Number of ADC Inputs	2 Input
Operating Supply Voltage	3.3 V
Pd - Power Dissipation	1.06 W
Product Type	ADCs - Analog to Digital Converters
Sample and Hold	Yes
SFDR - Spurious Free Dynamic Range	88 dB
SINAD - Signal to Noise and Distortion Ratio	68.2 dB
Factory Pack Quantity	2000
Subcategory	Data Converter ICs

For more information, please refer to datasheet

Documents

ADC12DS105CISQ/NOPB Datasheet

More Information

The ADC12DS105 is a high-performance CMOS analog-to-digital converter capable of converting two analog input signals into 12-bit digital words at rates up to 105 Mega Samples Per Second (MSPS). The digital outputs are serialized and provided on differential LVDS signal pairs. This converter uses a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption and the external component count, while providing excellent dynamic performance. The ADC12DS105 may be operated from a single +3.0V or 3.3V power supply. A power-down feature reduces the power consumption to very low levels while still allowing fast wake-up time to full operation. The differential inputs accept a 2V full scale differential input swing. A stable 1.2V internal voltage reference is provided, or the ADC12DS105 can be operated with an external 1.2V reference. The selectable duty cycle stabilizer maintains performance over a wide range of clock duty cycles. A serial interface allows access to the internal registers for full control of the ADC12DS105's functionality. The ADC12DS105 is available in a 60-lead WQFN package and operates over the industrial temperature range of −40°C to +85°C
