ADC12J1600NKET Texas Instruments - Yeehing Electronics

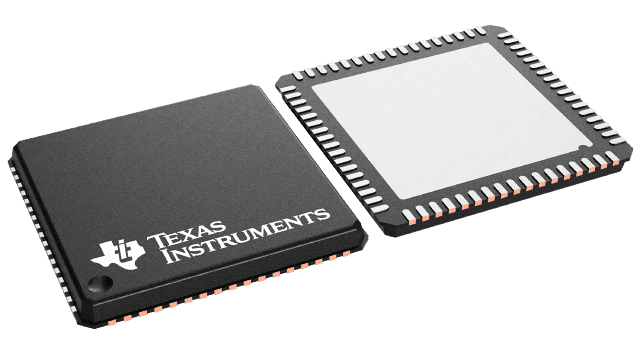

12-Bit, 1.6-GSPS, RF Sampling Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	805.314
100 — 249	741.4
250 — 999	639.138
1,000 +	563.72

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Minimum Operating Temperature	-40
Maximum Operating Temperature	85
Factory Pack Quantity	250
Package | Pins	VQFNP (NKE) | 68

For more information, please refer to datasheet

Documents

ADC12J1600NKET Datasheet

More Information

The ADC12J1600 and ADC12J2700 devices are wideband sampling and digital tuning devices. Texas Instruments’ giga-sample analog-to-digital converter (ADC) technology enables a large block of frequency spectrum to be sampled directly at RF. An integrated DDC (Digital Down Converter) provides digital filtering and down-conversion. The selected frequency block is made available on a JESD204B serial interface. Data is output as baseband 15-bit complex information for ease of downstream processing. Based on the digital down-converter (DDC) decimation and link output rate settings, this data is output on 1 to 5 lanes of the serial interface.
