Texas Instruments
ADC12J4000NKET
ADC12J4000NKET
Couldn't load pickup availability

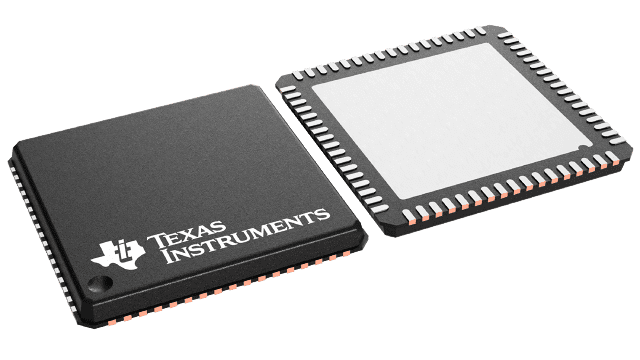

ADC12J4000NKET Texas Instruments - Yeehing Electronics
12-Bit, 4.0-GSPS, RF Sampling Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | None |
| 100 — 249 | None |
| 250 — 999 | None |
| 1,000 + | None |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS8354 |
| Mounting Style | SMD/SMT |
| Package / Case | WQFN-16 |
| Resolution | 16 bit |
| Number of Channels | 2 Channel |
| Sampling Rate | 700 kS/s |
| Interface Type | SPI |
| Architecture | SAR |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.5 V to 5.5 V |
| Digital Supply Voltage | 1.65 V to 5.5 V |
| SNR - Signal to Noise Ratio | 92 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Features | Internal Reference |
| Power Consumption | 45 mW |
| Brand | Texas Instruments |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 4.5 V to 5.5 V |
| Product Type | ADCs - Analog to Digital Converters |
| SINAD - Signal to Noise and Distortion Ratio | 92.2 dB |
| Factory Pack Quantity | 3000 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| ADC12J4000NKET Datasheet |
More Information
The ADC12J4000 device is a wideband sampling and digital tuning device. Texas Instruments giga-sample analog-to-digital converter (ADC) technology enables a large block of frequency spectrum to be sampled directly at RF. An integrated DDC (Digital Down Converter) provides digital filtering and down-conversion. The selected frequency block is made available on a JESD204B serial interface. Data is output as baseband 15-bit complex information for ease of downstream processing. Based on the digital down-converter (DDC) decimation and link output rate settings, this data is output on 1 to 5 lanes of the serial interface.
