ADC12L063CIVY/NOPB Texas Instruments - Yeehing Electronics

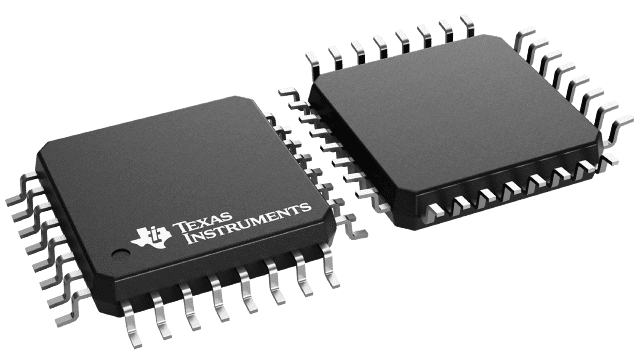

12-Bit, 62-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 23.643 |
| 100 — 249 | 20.652 |
| 250 — 999 | 15.924 |
| 1,000 + | 9.97 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADC12L063 |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-32 |
| Resolution | 12 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 62 MS/s |
| Input Type | Differential |
| Interface Type | Parallel |
| Architecture | Pipeline |
| Reference Type | External |
| Analog Supply Voltage | 3.3 V |
| Digital Supply Voltage | 2.5 V to 3.6 V |
| SNR - Signal to Noise Ratio | 66 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Low Power |
| Height | 1.4 mm |
| Input Voltage | 1 V |
| Length | 7 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 354 mW |
| Type | S/H ADC |
| Width | 7 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 0.5 LSB |
| ENOB - Effective Number of Bits | 10.3 Bit |
| Gain Error | 3 % FSR |
| INL - Integral Nonlinearity | 2.4 LSB |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 1 Input |
| Operating Supply Voltage | 3.3 V |
| Product Type | ADCs - Analog to Digital Converters |
| Sample and Hold | Yes |
| SFDR - Spurious Free Dynamic Range | 78 dB |
| SINAD - Signal to Noise and Distortion Ratio | 65 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.027302 oz |
For more information, please refer to datasheet
Documents
| ADC12L063CIVY/NOPB Datasheet |
More Information
The ADC12L063 is a monolithic CMOS analog-to-digital converter capable of converting analog input signals into 12-bit digital words at 62 Megasamples per second (MSPS), minimum. This converter uses a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize die size and power consumption while providing excellent dynamic performance. Operating on a single 3.3V power supply, this device consumes just 354 mW at 62 MSPS, including the reference current. The Power Down feature reduces power consumption to just 50 mW.
