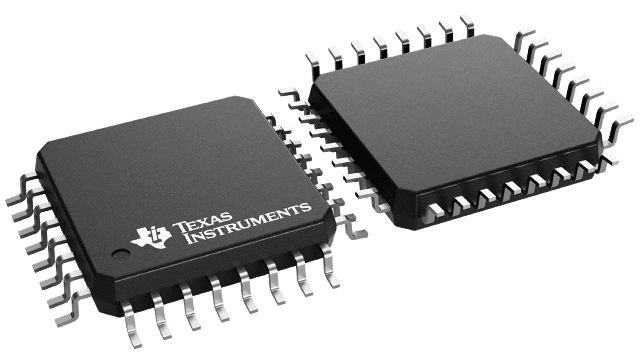

ADC12L066CIVY/NOPB Texas Instruments - Yeehing Electronics

12-Bit, 66-MSPS, 450-MHz Input Bandwidth Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	20.151
100 — 249	17.602
250 — 999	13.571
1,000 +	8.50

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADC12L066CIVY/NOPB Datasheet

More Information

The ADC12L066 is a monolithic CMOS analog-to-digital converter capable of converting analog input signals into 12-bit digital words at 66 Megasamples per second (Msps), minimum, with typical operation possible up to 80 Msps. This converter uses a differential, pipeline architecture with digital error correction and an on-chip sample-and-hold circuit to minimize die size and power consumption while providing excellent dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 450 MHz. Operating on a single 3.3V power supply, this device consumes just 357 mW at 66 Msps, including the reference current. The Power Down feature reduces power consumption to just 50 mW.
