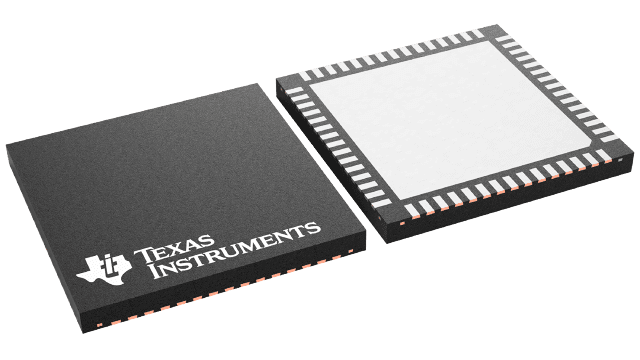

ADC12QS065CISQ/NOPB Texas Instruments - Yeehing Electronics
Quad-Channel, 12-Bit, 65-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 49.688 |
| 100 — 249 | 44.167 |
| 250 — 999 | 36.308 |
| 1,000 + | 22.73 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| ADC12QS065CISQ/NOPB Datasheet |
More Information
The ADC12QS065 is a low power, high performance CMOS 4-channel analog-to-digital converter with LVDS serialized outputs. The ADC12QS065 digitizes signals to 12 bits resolution at sampling rates up to 65 MSPS while consuming a typical 200 mW/ADC from a single 3.3V supply. Sampled data is transformed into high speed serial LVDS output data streams. Clock and frame LVDS pairs aid in data capture. The ADC12QS065’s six differential pairs transmit data over backplanes or cable and also make PCB design easier. In addition, the reduced cable, PCB trace count, and connector size tremendously reduce cost.
