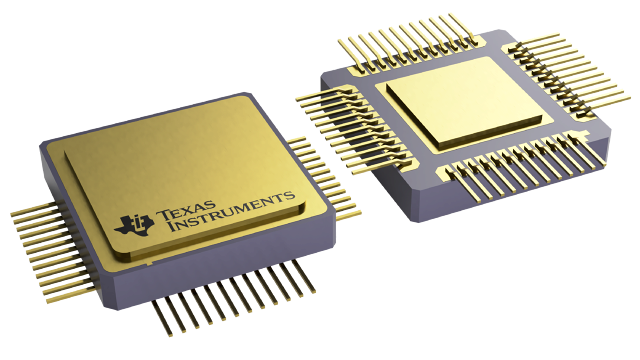

ADC14155W-MLS Texas Instruments - Yeehing Electronics

Radiation-hardness-assured (RHA), QMLV, 300-krad, ceramic, 14-bit, single, 155-MSPS ADC

Pricing (USD)

Quantity	Unit Price
1 — 99	11952.864
100 — 249	11312.532
250 — 999	10672.2
1,000 +	8367.00

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADC14155W-MLS Datasheet

More Information

The ADC14155QML-SP is a high-performance CMOS analog-to-digital converter capable of converting analog input signals into 14-bit digital words at rates up to 155 MSPS. This converter uses a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption and the external component count, while providing excellent dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 1.1 GHz. The ADC14155 operates from dual 3.3-V and 1.8-V power supplies and consumes 967 mW of power at 155 MSPS.
