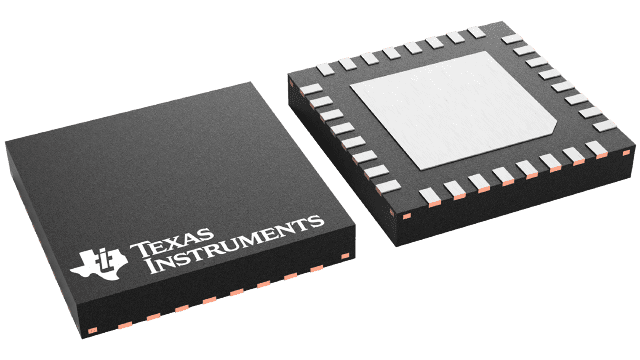

ADC14C105CISQE/NOPB Texas Instruments - Yeehing Electronics
14-Bit, 105-MSPS, 1.0-GHz Input Bandwidth Analog-to-Digital Converter (ADC)
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 69.855 |
100 — 249 | 62.094 |
250 — 999 | 51.045 |
1,000 + | 36.53 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Minimum Operating Temperature | -40 |
Maximum Operating Temperature | 85 |
Factory Pack Quantity | 250 |
Package | Pins | WQFN (RTV) | 32 |
For more information, please refer to datasheet
Documents
ADC14C105CISQE/NOPB Datasheet |
More Information
The ADC14C105 is a high-performance CMOS analog-to-digital converter capable of converting analog input signals into 14-bit digital words at rates up to 105 Mega Samples Per Second (MSPS). This converter uses a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption and the external component count, while providing excellent dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 1 GHz. The ADC14C105 may be operated from a single +3.0V or +3.3V power supply and consumes low power.
