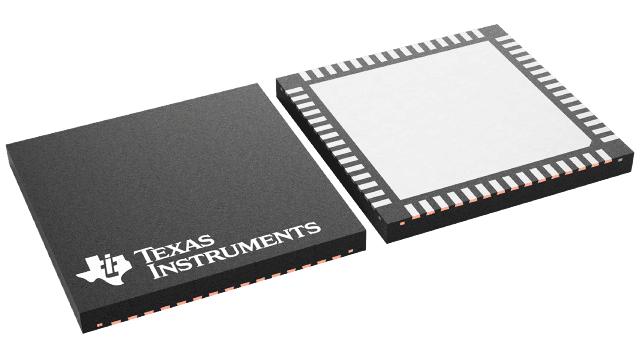

ADC14DC080CISQE/NOPB


YeeHing #: Y004-ADC14DC080CISQE/NOPB
Inventory: 8400

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ADC14DC080CISQE/NOPB Texas Instruments - Yeehing Electronics

Dual-Channel, 14-Bit, 80-MSPS, 1.0-GHz Input Bandwidth Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity Unit Price
1 — 99 55.583
100 — 249 49.407
250 — 999 40.616
1,000 + 25.43

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Analog to Digital Converters - ADC
RoHS Y
Series ADC14DC080
Mounting Style SMD/SMT
Package / Case WQFN-60
Resolution 14 bit
Number of Channels 2 Channel
Sampling Rate 80 MS/s
Input Type Differential
Interface Type Parallel
Architecture Pipeline
Reference Type External, Internal
Analog Supply Voltage 2.7 V to 3.6 V
Digital Supply Voltage 2.4 V to 3.6 V
SNR - Signal to Noise Ratio 73 dB
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Reel
Features High Performance
Height 0.8 mm
Input Voltage 2 V
Length 9 mm
Number of Converters 2 Converter
Power Consumption 600 mW
Type S/H ADC
Width 9 mm
Brand Texas Instruments
DNL - Differential Nonlinearity +/- 0.4 LSB
ENOB - Effective Number of Bits 11.4 Bit
Gain Error 1 % FSR
INL - Integral Nonlinearity 4 LSB
Moisture Sensitive Yes
Number of ADC Inputs 2 Input
Operating Supply Voltage 3.3 V
Pd - Power Dissipation 600 mW
Product Type ADCs - Analog to Digital Converters
Sample and Hold Yes
SFDR - Spurious Free Dynamic Range 83 dB
SINAD - Signal to Noise and Distortion Ratio 70.7 dB
Factory Pack Quantity 250
Subcategory Data Converter ICs

For more information, please refer to datasheet

Documents

ADC14DC080CISQE/NOPB Datasheet

More Information

The ADC14DC080 is a high-performance CMOS analog-to-digital converter capable of converting two analog input signals into 14-bit digital words at rates up to 80 Mega Samples Per Second (MSPS). These converters use a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption and the external component count, while providing excellent dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 1 GHz. The ADC14DC080 may be operated from a single +3.0V power supply. A power-down feature reduces the power consumption to very low levels while still allowing fast wake-up time to full operation. The differential inputs provide a 2V full scale differential input swing. A stable 1.2V internal voltage reference is provided, or the ADC14DC080 can be operated with an external 1.2V reference. Output data format (offset binary versus 2's complement) and duty cycle stabilizer are pin-selectable. The duty cycle stabilizer maintains performance over a wide range of clock duty cycles.
