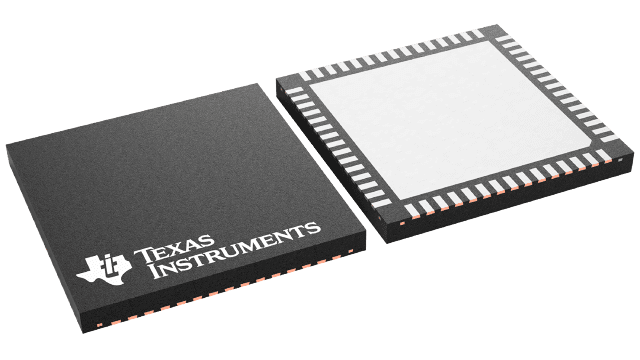

ADC14DS080CISQE/NOPB Texas Instruments - Yeehing Electronics

Dual-Channel, 14-Bit, 80-MSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	58.68
100 — 249	52.16
250 — 999	42.879
1,000 +	26.85

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADC14DS080
Mounting Style	SMD/SMT
Package / Case	WQFN-60
Resolution	14 bit
Number of Channels	2 Channel
Sampling Rate	80 MS/s
Input Type	Differential
Interface Type	SPI
Architecture	Pipeline
Reference Type	External, Internal
Analog Supply Voltage	2.7 V to 3.6 V
Digital Supply Voltage	2.7 V to 3.6 V
SNR - Signal to Noise Ratio	74.2 dB
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	High Performance
Height	0.8 mm
Input Voltage	2 V
Length	9 mm
Number of Converters	2 Converter
Output Type	LVDS
Power Consumption	800 mW
Type	S/H ADC
Width	9 mm
Brand	Texas Instruments
DNL - Differential Nonlinearity	+/- 1 LSB
ENOB - Effective Number of Bits	11.6 Bit
INL - Integral Nonlinearity	1.5 LSB
Moisture Sensitive	Yes
Number of ADC Inputs	2 Input
Operating Supply Voltage	3 V
Pd - Power Dissipation	845 mW
Product Type	ADCs - Analog to Digital Converters
Sample and Hold	Yes
SFDR - Spurious Free Dynamic Range	90 dB
SINAD - Signal to Noise and Distortion Ratio	71.3 dB
Factory Pack Quantity	250
Subcategory	Data Converter ICs

For more information, please refer to datasheet

Documents

ADC14DS080CISQE/NOPB Datasheet

More Information

The ADC14DS080 is a high-performance CMOS analog-to-digital converter capable of converting two analog input signals into 14-bit digital words at rates up to 80 Mega Samples Per Second (MSPS). The digital outputs are serialized and provided on differential LVDS signal pairs. These converters use a differential, pipelined architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption and the external component count, while providing excellent dynamic performance. A unique sample-and-hold stage yields a full-power bandwidth of 1 GHz. The ADC14DS080 may be operated from a single +3.0V or 3.3V power supply. A power-down feature reduces the power consumption to very low levels while still allowing fast wake-up time to full operation. The differential inputs accept a 2V full scale differential input swing. A stable 1.2V internal voltage reference is provided, or the ADC14DS080 can be operated with an external 1.2V reference. Output data format (offset binary versus 2's complement) and duty cycle stabilizer are selectable. The duty cycle stabilizer maintains performance over a wide range of clock duty cycles. A serial interface allows access to the control registers for full control of the ADC14DS80 functionality. The ADC14DS080 is available in a 60-lead WQFN package and operates over the industrial temperature range of −40°C to +85°C.
