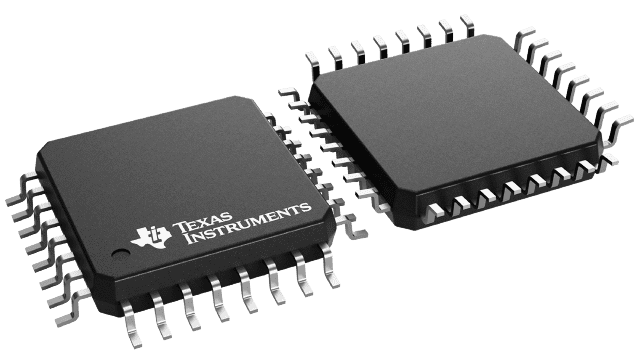

14-Bit, 40-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 22.659 |
| 100 — 249 | 20.142 |
| 250 — 999 | 16.558 |
| 1,000 + | 10.37 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADC14L040 |
| Mounting Style | SMD/SMT |
| Package / Case | LQFP-32 |
| Resolution | 14 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 40 MS/s |
| Input Type | Differential |
| Interface Type | Parallel |
| Architecture | Pipeline |
| Reference Type | External, Internal |
| Analog Supply Voltage | 3.3 V |
| Digital Supply Voltage | 2.4 V to 3.6 V |
| SNR - Signal to Noise Ratio | 74 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tray |
| Features | Low Power |
| Height | 1.4 mm |
| Input Voltage | 2 V |
| Length | 7 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 235 mW |
| Type | S/H ADC |
| Width | 7 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 0.5 LSB |
| ENOB - Effective Number of Bits | 11.9 Bit |
| Gain Error | 3.3 % FSR |
| INL - Integral Nonlinearity | 3.8 LSB |
| Moisture Sensitive | Yes |
| Number of ADC Inputs | 1 Input |
| Operating Supply Voltage | 3.3 V |
| Pd - Power Dissipation | 235 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Sample and Hold | Yes |
| SFDR - Spurious Free Dynamic Range | 90 dB |
| SINAD - Signal to Noise and Distortion Ratio | 73 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.027302 oz |
For more information, please refer to datasheet
Documents
| ADC14L040CIVY/NOPB Datasheet |
More Information
The ADC14L040 is a low power monolithic CMOS analog-to-digital converter capable of converting analog input signals into 14-bit digital words at 40 Megasamples per second (MSPS). This converter uses a differential, pipeline architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption while providing excellent dynamic performance and a 150 MHz Full Power Bandwidth. Operating on a single +3.3V power supply, the ADC14L040 achieves 11.9 effective bits at nyquist and consumes just 235 mW at 40 MSPS . The Power Down feature reduces power consumption to 15 mW.
