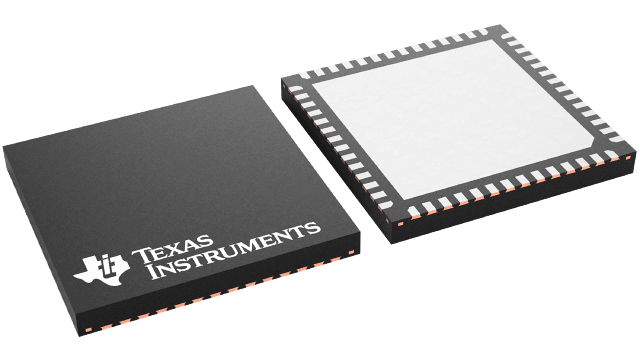

ADC16DX370RMET Texas Instruments - Yeehing Electronics
Dual-Channel, 16-Bit, 370-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 299.883 |
| 100 — 249 | 271.446 |
| 250 — 999 | 263.69 |
| 1,000 + | 206.82 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS5292 |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-80 |
| Resolution | 12 bit |
| Number of Channels | 8 Channel |
| Sampling Rate | 80 MS/s |
| Input Type | Differential |
| Interface Type | Serial |
| Architecture | Pipeline |
| Analog Supply Voltage | 1.8 V |
| Digital Supply Voltage | 1.8 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Low Power |
| Number of Converters | 8 Converter |
| Output Type | LVDS |
| Power Consumption | 376 mW |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 0.8 LSB |
| ENOB - Effective Number of Bits | 11.3 Bit |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 1.7 V to 1.9 V |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 85 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.013355 oz |
For more information, please refer to datasheet
Documents
| ADC16DX370RMET Datasheet |
More Information
The ADC16DX370 device is a monolithic dual-channel high performance analog-to-digital converter capable of converting analog input signals into 16-bit digital words with a sampling rate of 370 MSPS. This converter uses a differential pipelined architecture with integrated input buffer to provide excellent dynamic performance while maintaining low power consumption.
