ADC31RF80IRMP Texas Instruments - Yeehing Electronics

14-Bit, 3-GSPS, RF-Sampling Wideband Receiver and Feedback IC

Pricing (USD)

Quantity	Unit Price
1 — 99	880.212
100 — 249	810.354
250 — 999	698.581
1,000 +	616.15

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	RF Front End
RoHS	Y
Type	RF Front End
Operating Frequency	4 GHz
NF - Noise Figure	24.7 dB
Operating Supply Voltage	1.15 V, 1.9 V
Operating Supply Current	975 mA
Maximum Operating Temperature	+ 85 C
Maximum Data Rate	12.5 Gb/s
Mounting Style	SMD/SMT

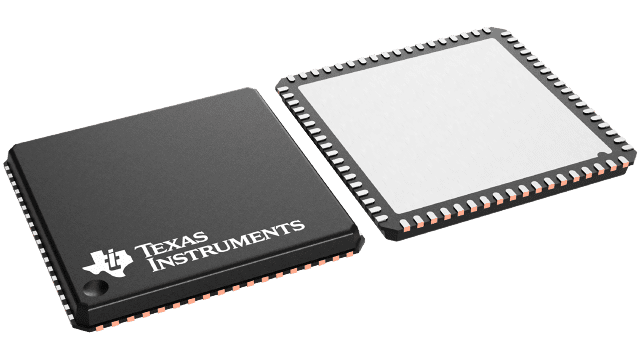

Package / Case	VQFN-72
Packaging	Reel
Bandwidth	3200 MHz
Features	Decimating Filter, Ultra High Speed
Operating Temperature Range	- 40 C to + 85 C
Series	ADC31RF80
Technology	Silicon
Brand	Texas Instruments
Gain	2 dB
Development Kit	ADC32RF80EVM
Minimum Operating Temperature	- 40 C
Moisture Sensitive	Yes
Product Type	RF Front End
Factory Pack Quantity	250
Subcategory	Wireless & RF Integrated Circuits

For more information, please refer to datasheet

Documents

ADC31RF80IRMP Datasheet

More Information

The ADC31RF80 device is a 14-bit, 3-GSPS, single-channel telecom receiver and feedback device that supports RF sampling with input frequencies up to 4 GHz and beyond. Designed for high signal-to-noise ratio (SNR), the ADC31RF80 delivers a noise spectral density of –155 dBFS/Hz as well as dynamic range over a large input frequency range. The buffered analog input with on-chip termination provides uniform input impedance across a wide frequency range and minimizes sample-and-hold glitch energy.
