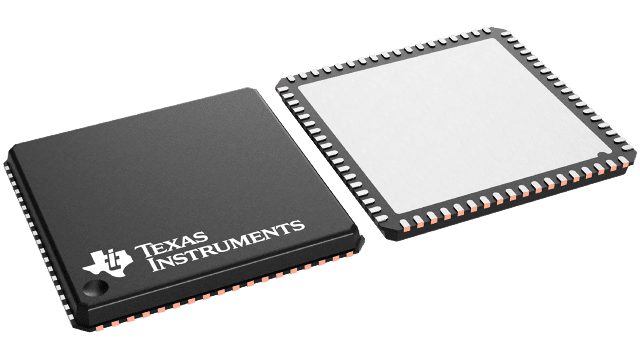

Texas Instruments
ADC31RF80IRMPT
ADC31RF80IRMPT
Regular price
$616.15 USD
Regular price
Sale price
$616.15 USD
Unit price
per
Couldn't load pickup availability
ADC31RF80IRMPT Texas Instruments - Yeehing Electronics
14-Bit, 3-GSPS, RF-Sampling Wideband Receiver and Feedback IC
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 880.212 |
| 100 — 249 | 810.354 |
| 250 — 999 | 698.581 |
| 1,000 + | 616.15 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | RF Front End |
| RoHS | Y |
| Type | RF Front End |
| Operating Frequency | 4 GHz |
| NF - Noise Figure | 24.7 dB |
| Operating Supply Voltage | 1.15 V, 1.9 V |
| Operating Supply Current | 975 mA |
| Maximum Operating Temperature | + 85 C |
| Maximum Data Rate | 12.5 Gb/s |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-72 |
| Packaging | Reel |
| Bandwidth | 3200 MHz |
| Features | Decimating Filter, Ultra High Speed |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | ADC31RF80 |
| Technology | Silicon |
| Brand | Texas Instruments |
| Gain | 2 dB |
| Development Kit | ADC32RF80EVM |
| Minimum Operating Temperature | - 40 C |
| Moisture Sensitive | Yes |
| Product Type | RF Front End |
| Factory Pack Quantity | 250 |
| Subcategory | Wireless & RF Integrated Circuits |
For more information, please refer to datasheet
Documents
| ADC31RF80IRMPT Datasheet |
More Information
The ADC31RF80 device is a 14-bit, 3-GSPS, single-channel telecom receiver and feedback device that supports RF sampling with input frequencies up to 4 GHz and beyond. Designed for high signal-to-noise ratio (SNR), the ADC31RF80 delivers a noise spectral density of –155 dBFS/Hz as well as dynamic range over a large input frequency range. The buffered analog input with on-chip termination provides uniform input impedance across a wide frequency range and minimizes sample-and-hold glitch energy.
