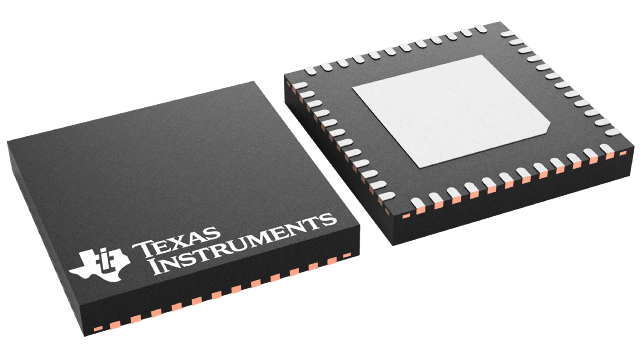

ADC32J45IRGZT Texas Instruments - Yeehing Electronics
Dual-Channel, 14-Bit, 160-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 57.864 |
100 — 249 | 56.124 |
250 — 999 | 46.727 |
1,000 + | 34.81 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog to Digital Converters - ADC |
RoHS | Y |
Series | ADC32J45 |
Mounting Style | SMD/SMT |
Package / Case | VQFN-48 |
Resolution | 14 bit |
Number of Channels | 2 Channel |
Sampling Rate | 160 MS/s |
Input Type | Differential |
Interface Type | JESD204B |
Architecture | Pipeline |
Reference Type | External, Internal |
Analog Supply Voltage | 1.8 V |
Digital Supply Voltage | 1.8 V |
SNR - Signal to Noise Ratio | 72.8 dB |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 85 C |
Packaging | Reel |
Features | Low Power |
Height | 1 mm |
Input Voltage | 1.8 V |
Length | 7.15 mm |
Number of Converters | 1 Converter |
Power Consumption | 454 mW |
Type | ADC |
Width | 7.15 mm |
Brand | Texas Instruments |
Shutdown | No Shutdown |
DNL - Differential Nonlinearity | 0.3 LSB |
ENOB - Effective Number of Bits | 11.8 Bit |
INL - Integral Nonlinearity | 1.5 LSBs |
Moisture Sensitive | Yes |
Number of ADC Inputs | 2 Input |
Operating Supply Current | 192 mA |
Pd - Power Dissipation | 454 mW |
Product Type | ADCs - Analog to Digital Converters |
SFDR - Spurious Free Dynamic Range | 85 dB |
SINAD - Signal to Noise and Distortion Ratio | 71.5 dB |
Factory Pack Quantity | 250 |
Subcategory | Data Converter ICs |
Supply Voltage - Max | 1.9 V |
Supply Voltage - Min | 1.7 V |
THD - Total Harmonic Distortion | 87 dBc |
Unit Weight | 0.004868 oz |
For more information, please refer to datasheet
Documents
ADC32J45IRGZT Datasheet |
More Information
The ADC32J4x are a high-linearity, ultra-low power, dual-channel, 14-bit, 50-MSPS to 160-MSPS, analog-to-digital converter (ADC) family. The devices are designed specifically to support demanding, high input frequency signals with large dynamic range requirements. A clock input divider allows more flexibility for system clock architecture design and the SYSREF input enables complete system synchronization. The ADC32J4x family supports JESD204B interface in order to reduce the number of interface lines, thus allowing high system integration density. The JESD204B interface is a serial interface, where the data of each ADC are serialized and output over only one differential pair. An internal phase-locked loop (PLL) multiplies the incoming ADC sampling clock by 20 to derive the bit clock, which is used to serialize the 14-bit data from each channel. The devices support subclass 1 with interface speeds up to 3.2 Gbps.
