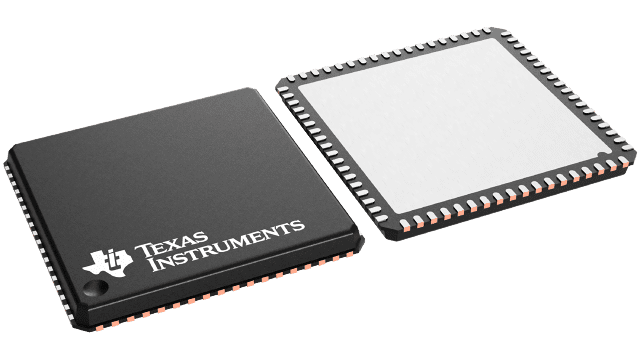

ADC32RF80IRMPR Texas Instruments - Yeehing Electronics

Dual-channel, 14-bit, 3-GSPS, dual DDC/channel, RF-sampling wideband receiver and feedback IC

Pricing (USD)

Quantity	Unit Price
1 — 99	1278.225
100 — 249	1176.778
250 — 999	1014.464
1,000 +	894.76

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog Front End - AFE
RoHS	Y
Series	ADC32RF80
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Decimating Filter, Ultra High Speed
Power Consumption	6.4 W
Brand	Texas Instruments
Digital Supply Voltage	1.1 V to 1.2 V
Moisture Sensitive	Yes
Product Type	Analog Front End - AFE
SFDR - Spurious Free Dynamic Range	66 dB
Factory Pack Quantity	1500
Subcategory	Data Converter ICs

For more information, please refer to datasheet

Documents

ADC32RF80IRMPR Datasheet

More Information

The ADC32RF8x (ADC32RF80 and ADC32RF83) is a 14-bit, 3-GSPS, dual-channel telecom receiver and feedback device family that supports RF sampling with input frequencies up to 4 GHz and beyond. Designed for high signal-to-noise ratio (SNR), the ADC32RF8x family delivers a noise spectral density of –155 dBFS/Hz as well as dynamic range and channel isolation over a large input frequency range. The buffered analog input with on-chip termination provides uniform input impedance across a wide frequency range and minimizes sample-and-hold glitch energy.
