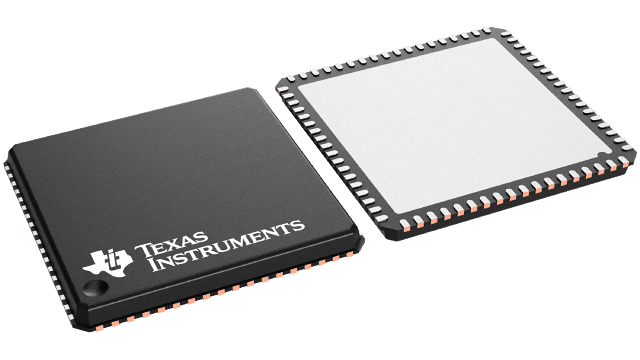

ADC32RF82IRMPR Texas Instruments - Yeehing Electronics

Dual-channel, 14-bit, 2.45-GSPS, RF-sampling telecom receiver and feedback IC

Pricing (USD)

Quantity	Unit Price
1 — 99	1040.387
100 — 249	957.817
250 — 999	825.704
1,000 +	728.27

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	RF Front End
Type	RF Front End
Operating Frequency	4 GHz
NF - Noise Figure	24.7 dB
Operating Supply Voltage	1.15 V, 1.9 V
Operating Supply Current	1.5 A
Maximum Operating Temperature	+ 85 C
Maximum Data Rate	12.5 Gb/s
Mounting Style	SMD/SMT
Package / Case	VQFN-72
Packaging	Reel
Bandwidth	3200 MHz
Features	Decimating Filter, Ultra High Speed
Operating Temperature Range	- 40 C to + 85 C
Series	ADC32RF82
Technology	Silicon
Brand	Texas Instruments
Gain	2 dB
Development Kit	ADC32RF82EVM
Minimum Operating Temperature	- 40 C
Product Type	RF Front End
Factory Pack Quantity	1500
Subcategory	Wireless & RF Integrated Circuits

For more information, please refer to datasheet

Documents

ADC32RF82IRMPR Datasheet

More Information

The ADC32RF82 is a 14-bit, 2457.6-MSPS, dual-channel telecom receiver and feedback device family that supports RF sampling with input frequencies up to 4 GHz and beyond. Designed for high signal-to-noise ratio (SNR), the ADC32RF82 delivers a noise spectral density of –154.1 dBFS/Hz as well as dynamic range and channel isolation over a large input frequency range. The buffered analog input with on-chip termination provides uniform input impedance across a wide frequency range and minimizes sample-and-hold glitch energy.
