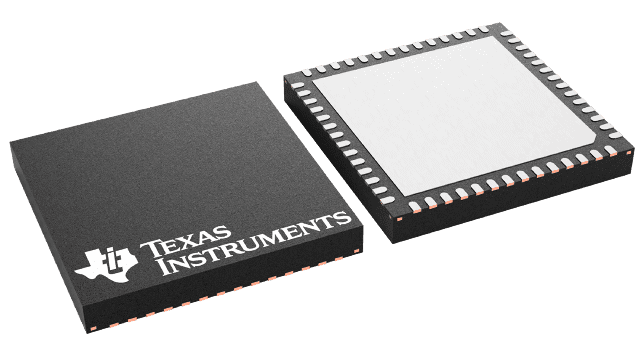

ADC3421IRTQT Texas Instruments - Yeehing Electronics

Quad-channel 12-bit 25-MSPS analog-to-digital converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	22.757
100 — 249	20.229
250 — 999	16.629
1,000 +	10.41

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADC3421
Mounting Style	SMD/SMT
Package / Case	QFN-56
Interface Type	I2C
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Packaging	Reel
Features	Low Power
Power Consumption	177 mW
Brand	Texas Instruments
ENOB - Effective Number of Bits	11.5 Bit
Moisture Sensitive	Yes
Product Type	ADCs - Analog to Digital Converters
SFDR - Spurious Free Dynamic Range	93 dB
SINAD - Signal to Noise and Distortion Ratio	71 dB
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.006924 oz

For more information, please refer to datasheet

Documents

ADC3421IRTQT Datasheet

More Information

The ADC342x are a high-linearity, ultra-low power, quad-channel, 12-bit, 25-MSPS to 125-MSPS, analog-to-digital converter (ADC) family. The devices are designed specifically to support demanding, high input frequency signals with large dynamic range requirements. An input clock divider allows more flexibility for system clock architecture design and the SYSREF input enables complete system synchronization. The ADC342x family supports serial low-voltage differential signaling (LVDS) in order to reduce the number of interface lines, thus allowing for high system integration density. The serial LVDS interface is two-wire, where each ADC data are serialized and output over two LVDS pairs. An internal phase-locked loop (PLL) multiplies the incoming ADC sampling clock to derive the bit clock that is used to serialize the 12-bit output data from each channel. In addition to the serial data streams, the frame and bit clocks are also transmitted as LVDS outputs.
