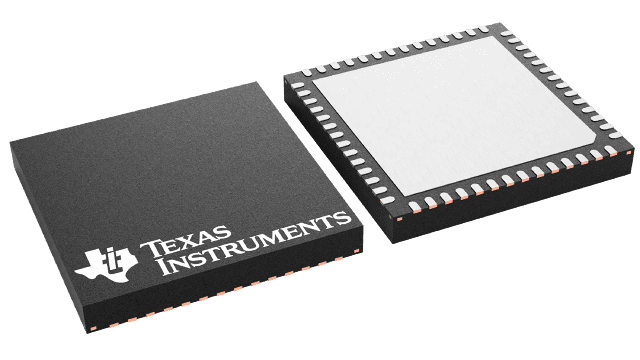

ADC3443IRTQT Texas Instruments - Yeehing Electronics
Quad-Channel, 14-Bit, 80-MSPS Analog-to-Digital Converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 59.436 |
| 100 — 249 | 57.649 |
| 250 — 999 | 47.996 |
| 1,000 + | 35.75 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADC3443 |
| Mounting Style | SMD/SMT |
| Package / Case | QFN-56 |
| Interface Type | I2C |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Low Power |
| Power Consumption | 288 mW |
| Brand | Texas Instruments |
| ENOB - Effective Number of Bits | 11.9 Bit |
| Moisture Sensitive | Yes |
| Product Type | ADCs - Analog to Digital Converters |
| SFDR - Spurious Free Dynamic Range | 93 dB |
| SINAD - Signal to Noise and Distortion Ratio | 73.3 dB |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| ADC3443IRTQT Datasheet |
More Information
The ADC344x devices are a high-linearity, ultra-low power, quad-channel, 14-bit, 25-MSPS to 125-MSPS, analog-to-digital converter (ADC) family. The devices are designed specifically to support demanding, high input frequency signals with large dynamic range requirements. An input clock divider allows more flexibility for system clock architecture design while the SYSREF input enables complete system synchronization.
