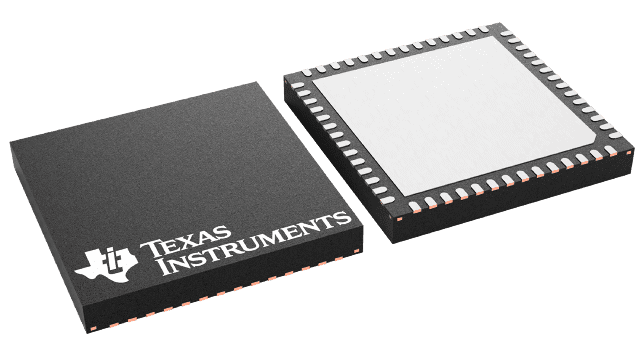

ADC3444IRTQT


YeeHing #: Y004-ADC3444IRTQT
Inventory: 2000

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ADC3444IRTQT Texas Instruments - Yeehing Electronics

Quad-Channel, 14-Bit, 125-MSPS Analog-to-Digital Converter (ADC)

Pricing (USD)

Quantity Unit Price
1 — 99 94.284
100 — 249 85.343
250 — 999 82.905
1,000 + 56.90

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Analog to Digital Converters - ADC
RoHS Y
Series ADC3444
Mounting Style SMD/SMT
Package / Case QFN-56
Interface Type I2C
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Packaging Reel
Features Low Power
Power Consumption 391 mW
Brand Texas Instruments
ENOB - Effective Number of Bits 11.8 Bit
Moisture Sensitive Yes
Product Type ADCs - Analog to Digital Converters
SFDR - Spurious Free Dynamic Range 93 dB
SINAD - Signal to Noise and Distortion Ratio 73 dB
Factory Pack Quantity 250
Subcategory Data Converter ICs
Unit Weight 0.006924 oz

For more information, please refer to datasheet

Documents

ADC3444IRTQT Datasheet

More Information

The ADC344x devices are a high-linearity, ultra-low power, quad-channel, 14-bit, 25-MSPS to 125-MSPS, analog-to-digital converter (ADC) family. The devices are designed specifically to support demanding, high input frequency signals with large dynamic range requirements. An input clock divider allows more flexibility for system clock architecture design while the SYSREF input enables complete system synchronization.
