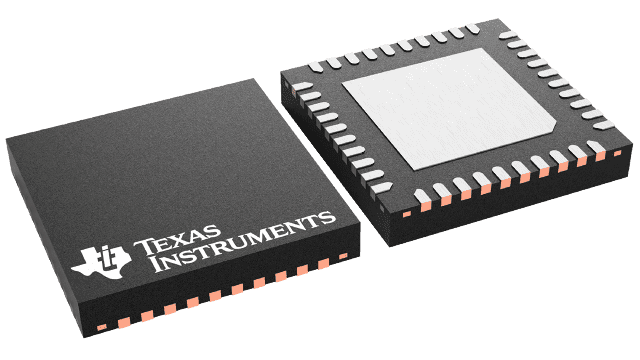

ADC3643IRSBT Texas Instruments - Yeehing Electronics

Dual-channel, 14-bit, 65-MSPS, low-noise, ultra-low-power analog-to-digital converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	54.597
100 — 249	52.955
250 — 999	44.088
1,000 +	28.73

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADC3643IRSBT Datasheet

More Information

The ADC364x family of devices are low-noise, ultra-low power, 14-bit, 10-MSPS to 65-MSPS dual-channel, high-speed analog-to-digital converters (ADCs). Designed for low power consumption, these devices deliver a noise spectral density of –155 dBFS/Hz, combined with excellent linearity and dynamic range. The ADC364x offers very good dc precision, together with IF sampling support, which make the device an excellent choice for a wide range of applications. High-speed control loops benefit from the short latency of only one clock cycle. The ADC consumes only 72 mW/ch at 65 MSPS, and power consumption scales well with lower sampling rates.
