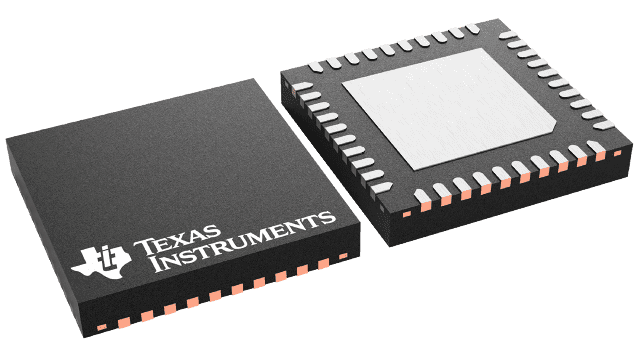

ADC3644IRSBT Texas Instruments - Yeehing Electronics

Dual-channel, 14-bit, 125-MSPS, low-noise, ultra-low-power analog-to-digital converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	70.49
100 — 249	68.37
250 — 999	56.922
1,000 +	37.10

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADC3644IRSBT Datasheet

More Information

The ADC3644 device is a low-noise, ultra-low power, 14-bit, 125-MSPS dual-channel, high-speed analog-to-digital converter (ADC). Designed for low power consumption, the device delivers a noise spectral density of –153 dBFS/Hz, combined with very good linearity and dynamic range. The ADC3644 offers IF sampling support, which make the device an excellent choice for a wide range of applications. High-speed control loops benefit from the short latency of only one clock cycle. The ADC consumes only 82 mW/ch at 125 MSPS, and power consumption scales well with lower sampling rates.
