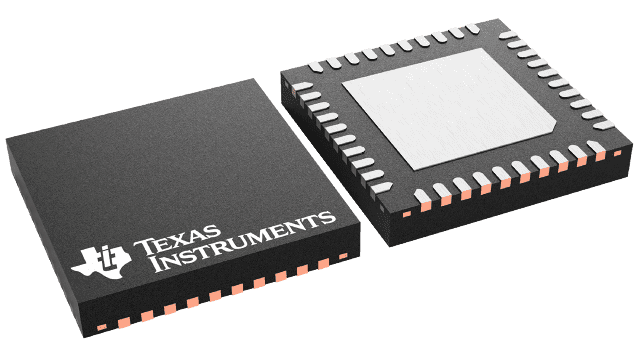

ADC3683IRSBT Texas Instruments - Yeehing Electronics

Dual-channel, 18-bit, 65-MSPS, low-noise, ultra-low-power analog-to-digital converter (ADC)

Pricing (USD)

Quantity	Unit Price
1 — 99	146.034
100 — 249	141.642
250 — 999	117.925
1,000 +	76.86

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADC3683IRSBT Datasheet

More Information

The ADC3681, 82, 83 (ADC368x) is a low noise, ultra-low power 18-bit 65 MSPS high-speed dual channel ADC family. Designed for lowest noise performance, it delivers a noise spectral density of -160 dBFS/Hz combined with excellent linearity and dynamic range. The ADC368x offers excellent DC precision together with IF sampling support which makes it suited for a wide range of applications. High-speed control loops benefit from the short latency as low as only 1 clock cycle. The ADC consumes only 94 mW/ch at 65 Msps and its power consumption scales well with lower sampling rates.
