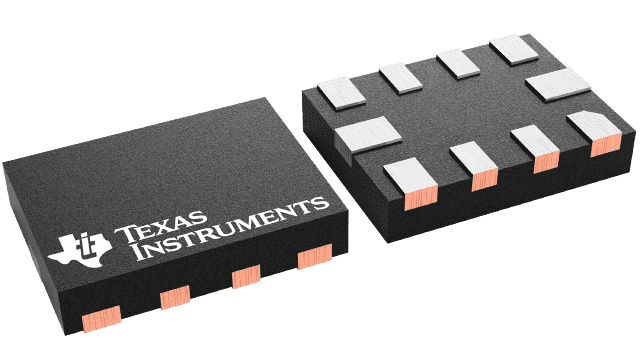

ADS1013IRUGT Texas Instruments - Yeehing Electronics

12-Bit 3.3kSPS 1-Ch Delta-Sigma ADC With Oscillator, Voltage Reference, and I2C

Pricing (USD)

Quantity	Unit Price
1 — 99	2.4
100 — 249	2.103
250 — 999	1.474
1,000 +	0.68

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS1013
Mounting Style	SMD/SMT
Package / Case	X2QFN-10
Resolution	12 bit
Number of Channels	1 Channel
Sampling Rate	3.3 kS/s
Input Type	Differential/Single-Ended
Interface Type	I2C
Architecture	Sigma-Delta
Reference Type	Internal
Analog Supply Voltage	2 V to 5.5 V
Digital Supply Voltage	2 V to 5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Features	Oscillator, Small Size
Height	0.37 mm
Input Voltage	+/- 4.096 V
Length	1.5 mm
Number of Converters	1 Converter
Power Consumption	0.3 mW
Type	Precision ADC
Width	2 mm
Brand	Texas Instruments
Gain Error	0.25 % FSR
INL - Integral Nonlinearity	0.5 LSB
Number of ADC Inputs	2 Input/1 Input
Operating Supply Voltage	3.3 V
Pd - Power Dissipation	900 uW
Product Type	ADCs - Analog to Digital Converters
Sample and Hold	No
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.000208 oz

For more information, please refer to datasheet

Documents

ADS1013IRUGT Datasheet

More Information

The ADS1013, ADS1014, and ADS1015 devices (ADS101x) are precision, low-power, 12-bit, I2C-compatible, analog-to-digital converters (ADCs) offered in an ultra-small, leadless, X2QFN-10 package, and a VSSOP-10 package. The ADS101x devices incorporate a low-drift voltage reference and an oscillator. The ADS1014 and ADS1015 also incorporate a programmable gain amplifier (PGA) and a digital comparator. These features, along with a wide operating supply range, make the ADS101x well suited for power- and space-constrained, sensor measurement applications.
