ADS1018IRUGR Texas Instruments - Yeehing Electronics
12-bit, 3.3-kSPS, 4-channel, delta-sigma ADC with PGA, oscillator, VREF, temp sensor and SPI
Pricing (USD)
Quantity | Unit Price |
1 — 99 | 2.666 |
100 — 249 | 2.336 |
250 — 999 | 1.638 |
1,000 + | 1.06 |
The above prices are for reference only.
Specifications
Manufacturer | Texas Instruments |
Product Category | Analog to Digital Converters - ADC |
RoHS | Y |
Series | ADS1018 |
Mounting Style | SMD/SMT |

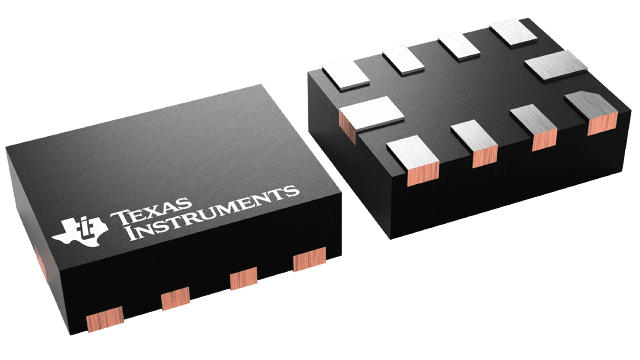

Package / Case | X2QFN-10 |
Resolution | 12 bit |
Number of Channels | 2 Channel/4 Channel |
Sampling Rate | 3.3 kS/s |
Input Type | Differential/Single-Ended |
Interface Type | SPI |
Architecture | Sigma-Delta |
Reference Type | Internal |
Analog Supply Voltage | 2 V to 5.5 V |
Digital Supply Voltage | 2 V to 5.5 V |
Minimum Operating Temperature | - 40 C |
Maximum Operating Temperature | + 125 C |
Packaging | Reel |
Features | Oscillator, PGA, Temp Sensor, Small Size |
Number of Converters | 1 Converter |
Power Consumption | 0.3 mW |
Type | Precision ADC |
Brand | Texas Instruments |
INL - Integral Nonlinearity | 0.5 LSB |
Operating Supply Voltage | 2 V to 5.5 V |
Pd - Power Dissipation | 900 uW |
Product Type | ADCs - Analog to Digital Converters |
Factory Pack Quantity | 3000 |
Subcategory | Data Converter ICs |
Unit Weight | 0.000208 oz |
For more information, please refer to datasheet
Documents
ADS1018IRUGR Datasheet |
More Information
The ADS1018 is a precision, low-power, 12-bit, noise-free, analog-to-digital converter (ADC) that provides all features necessary to measure the most common sensor signals in an ultrasmall, leadless, X2QFN-10 or VSSOP-10 package. The ADS1018 integrates a programmable gain amplifier (PGA), voltage reference, oscillator and high-accuracy temperature sensor. These features, along with a wide power-supply range from 2 V to 5.5 V, make the ADS1018 ideally suited for power- and space-constrained, sensor-measurement applications.
