ADS1018IRUGT


YeeHing #: Y004-ADS1018IRUGT
Inventory: 7800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ADS1018IRUGT Texas Instruments - Yeehing Electronics

12-bit, 3.3-kSPS, 4-channel, delta-sigma ADC with PGA, oscillator, VREF, temp sensor and SPI

Pricing (USD)

Quantity Unit Price
1 — 99 3.2
100 — 249 2.804
250 — 999 1.966
1,000 + 1.27

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Analog to Digital Converters - ADC
RoHS Y
Series ADS1018
Mounting Style SMD/SMT

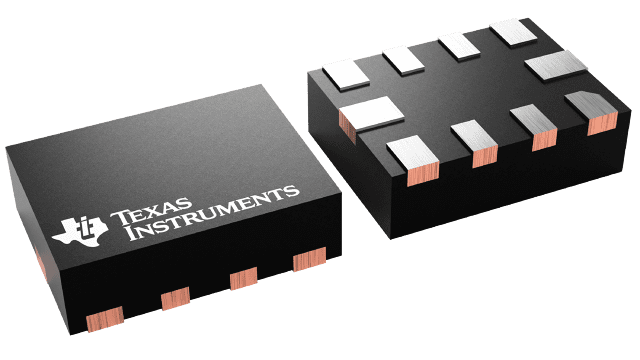

Package / Case X2QFN-10
Resolution 12 bit
Number of Channels 2 Channel/4 Channel
Sampling Rate 3.3 kS/s
Input Type Differential/Single-Ended
Interface Type SPI
Architecture Sigma-Delta
Reference Type Internal
Analog Supply Voltage 2 V to 5.5 V
Digital Supply Voltage 2 V to 5.5 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Packaging Reel
Features Oscillator, PGA, Temp Sensor, Small Size
Number of Converters 1 Converter
Power Consumption 0.3 mW
Type Precision ADC
Brand Texas Instruments
INL - Integral Nonlinearity 0.5 LSB
Operating Supply Voltage 2 V to 5.5 V
Pd - Power Dissipation 900 uW
Product Type ADCs - Analog to Digital Converters
Factory Pack Quantity 250
Subcategory Data Converter ICs
Unit Weight 0.000208 oz

For more information, please refer to datasheet

Documents

ADS1018IRUGT Datasheet

More Information

The ADS1018 is a precision, low-power, 12-bit, noise-free, analog-to-digital converter (ADC) that provides all features necessary to measure the most common sensor signals in an ultrasmall, leadless, X2QFN-10 or VSSOP-10 package. The ADS1018 integrates a programmable gain amplifier (PGA), voltage reference, oscillator and high-accuracy temperature sensor. These features, along with a wide power-supply range from 2 V to 5.5 V, make the ADS1018 ideally suited for power- and space-constrained, sensor-measurement applications.
