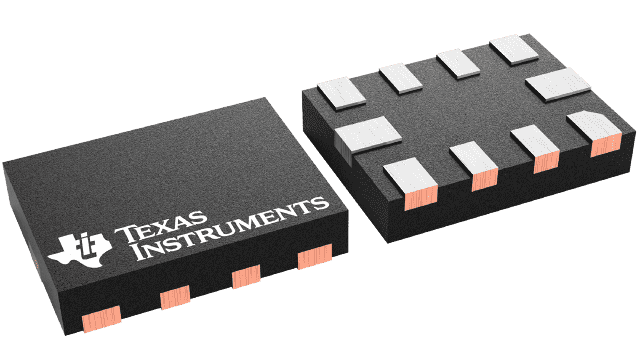

ADS1114IRUGT Texas Instruments - Yeehing Electronics

16-Bit 860SPS 1-Ch Delta-Sigma ADC With PGA, Oscillator, Vref, Comparator, and I2C

Pricing (USD)

Quantity	Unit Price
1 — 99	4.858
100 — 249	3.96
250 — 999	3.113
1,000 +	1.85

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS1114
Mounting Style	SMD/SMT
Package / Case	X2QFN-10
Resolution	16 bit
Number of Channels	1 Channel
Sampling Rate	860 S/s
Input Type	Differential/Single-Ended
Interface Type	I2C
Architecture	Sigma-Delta
Reference Type	Internal
Analog Supply Voltage	2 V to 5.5 V
Digital Supply Voltage	2 V to 5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Packaging	Reel
Features	Comparator, Oscillator, PGA, Small Size
Height	0.37 mm
Length	1.5 mm
Number of Converters	1 Converter
Power Consumption	0.3 mW
Type	Precision ADC
Width	2 mm
Brand	Texas Instruments
INL - Integral Nonlinearity	1 LSB
Operating Supply Voltage	2 V to 5.5 V
Pd - Power Dissipation	500 uW
Product Type	ADCs - Analog to Digital Converters
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.000208 oz

For more information, please refer to datasheet

Documents

ADS1114IRUGT Datasheet

More Information

The ADS1113, ADS1114, and ADS1115 devices (ADS111x) are precision, low-power, 16-bit, I2C-compatible, analog-to-digital converters (ADCs) offered in an ultra-small, leadless, X2QFN-10 package, and a VSSOP-10 package. The ADS111x devices incorporate a low-drift voltage reference and an oscillator. The ADS1114 and ADS1115 also incorporate a programmable gain amplifier (PGA) and a digital comparator. These features, along with a wide operating supply range, make the ADS111x well suited for power- and space-constrained, sensor measurement applications.
