ADS1118IRUGT Texas Instruments - Yeehing Electronics

16-bit, 860-SPS, 4-channel, delta-sigma ADC with PGA, oscillator, VREF, temp sensor and SPI

Pricing (USD)

Quantity	Unit Price
1 — 99	4.858
100 — 249	3.96
250 — 999	3.113
1,000 +	1.85

The above prices are for reference only.

Specifications

For more information, please refer to datasheet

Documents

ADS1118IRUGT Datasheet

More Information

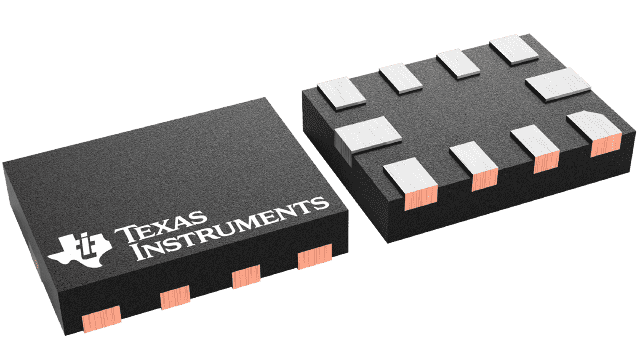

The ADS1118 is a precision, low power, 16-bit analog-to-digital converter (ADC) that provides all features necessary to measure the most common sensor signals in an ultra-small, leadless X2QFN-10 package or a VSSOP-10 package. The ADS1118 integrates a programmable gain amplifier (PGA), voltage reference, oscillator and high-accuracy temperature sensor. These features, along with a wide power supply range from 2 V to 5.5 V, make the ADS1118 ideally suited for power- and space-constrained, sensor-measurement applications.
