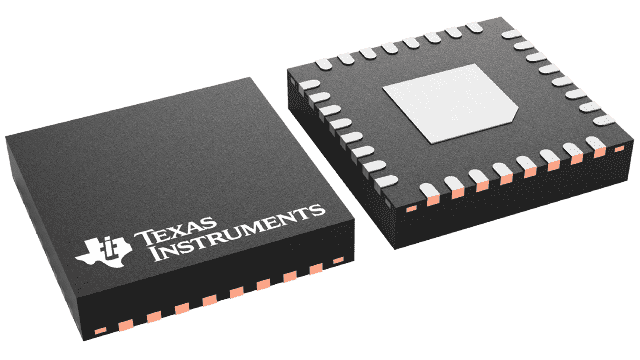

ADS114S08BIRHBR


YeeHing #: Y004-ADS114S08BIRHBR
Inventory: 6800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ADS114S08BIRHBR Texas Instruments - Yeehing Electronics

16-bit, 4-kSPS, 12-ch delta-sigma ADC with PGA and voltage reference for low-cost applications

Pricing (USD)

Quantity Unit Price
1 — 99 6.679
100 — 249 5.445
250 — 999 4.28
1,000 + 2.54

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Analog to Digital Converters - ADC
RoHS Y
Series ADS114S08B
Mounting Style SMD/SMT
Package / Case VQFN-32
Resolution 16 bit
Number of Channels 12 Channel
Sampling Rate 4 kS/s
Input Type Differential/Single-Ended
Interface Type SPI
Architecture Sigma-Delta
Reference Type External, Internal
Analog Supply Voltage 2.7 V to 5.25 V
Digital Supply Voltage 2.7 V to 3.6 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 125 C
Packaging Reel
Features 50/60 Hz Rejection, Excitation Current Sources (iDACs), GPIO, Oscillator, PGA, Temp Sensor
Power Consumption 1.75 mW
Type Precision ADC
Brand Texas Instruments
Shutdown No Shutdown
Gain Error 0.025 %
Moisture Sensitive Yes
Pd - Power Dissipation 1.75 W
Product Type ADCs - Analog to Digital Converters
Reference Voltage 2.5 V
Factory Pack Quantity 3000
Subcategory Data Converter ICs

For more information, please refer to datasheet

Documents

ADS114S08BIRHBR Datasheet

More Information

The ADS114S06B and ADS114S08B are precision, 16-bit, delta-sigma (ΔΣ), analog-to-digital converters (ADCs) that offer low power consumption and many integrated features to reduce system cost and component count in applications measuring small-signal sensors.
