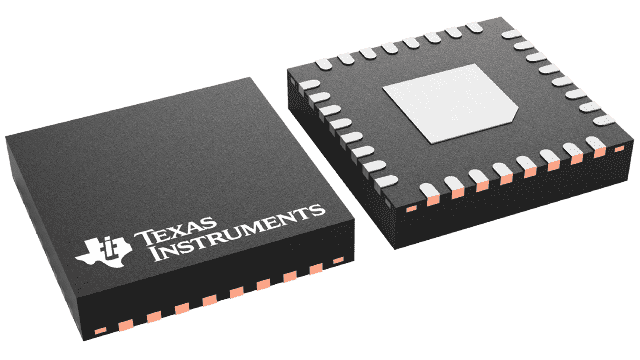

ADS114S08IRHBT


YeeHing #: Y004-ADS114S08IRHBT
Inventory: 3600

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ADS114S08IRHBT Texas Instruments - Yeehing Electronics

16-bit, 4-kSPS, 12-ch delta-sigma ADC with PGA and voltage reference for sensor measurement

Pricing (USD)

Quantity Unit Price
1 — 99 8.435
100 — 249 6.876
250 — 999 5.405
1,000 + 3.21

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Analog to Digital Converters - ADC
RoHS Y
Series ADS114S08
Mounting Style SMD/SMT
Package / Case VQFN-32
Resolution 16 bit
Number of Channels 12 Channel
Sampling Rate 4 kS/s
Input Type Differential/Single-Ended
Interface Type SPI
Architecture Sigma-Delta
Reference Type External, Internal
Analog Supply Voltage 2.7 V to 5.25 V
Digital Supply Voltage 2.7 V to 3.6 V
Minimum Operating Temperature - 50 C
Maximum Operating Temperature + 125 C
Packaging Reel
Features 50/60 Hz Rejection, Excitation Current Sources (iDACs), GPIO, Oscillator, PGA, Temp Sensor
Number of Converters 1 Converter
Power Consumption 1.75 mW
Type Low Power, Low Noise
Brand Texas Instruments
Shutdown No Shutdown
Moisture Sensitive Yes
Pd - Power Dissipation 1.75 mW
Product Type ADCs - Analog to Digital Converters
Reference Voltage 2.5 V
Factory Pack Quantity 250
Subcategory Data Converter ICs
Unit Weight 0.001894 oz

For more information, please refer to datasheet

Documents

ADS114S08IRHBT Datasheet

More Information

The ADS114S06 and ADS114S08 are precision, 16-bit, delta-sigma (ΔΣ), analog-to-digital converters (ADCs) that offer low power consumption and many integrated features to reduce system cost and component count in applications measuring small-signal sensors.
