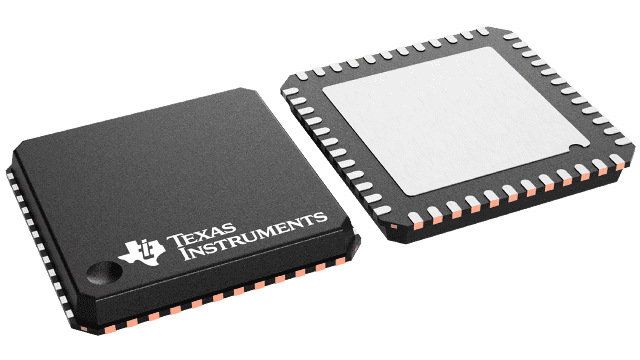

ADS1158IRTCR Texas Instruments - Yeehing Electronics
16-Bit, 125kSPS, 16-Ch Delta-Sigma ADC w/ Fast Channel Scan & Automatic Sequencer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.562 |
| 100 — 249 | 8.352 |
| 250 — 999 | 6.44 |
| 1,000 + | 4.03 |
The above prices are for reference only.
Specifications
For more information, please refer to datasheet
Documents
| ADS1158IRTCR Datasheet |
More Information
The ADS1158 is a 16-channel (multiplexed), low-noise, 16-bit, delta-sigma (ΔΣ) analog-to-digital converter (ADC) that provides single-cycle settled data at channel scan rates from 1.8k to 23.7k samples per second (SPS) per channel. A flexible input multiplexer accepts combinations of eight differential or 16 single-ended inputs with a full-scale differential range of 5V or true bipolar range of ±2.5V when operating with a 5V reference. The fourth-order delta-sigma modulator is followed by a fifth-order sinc digital filter optimized for low-noise performance.
