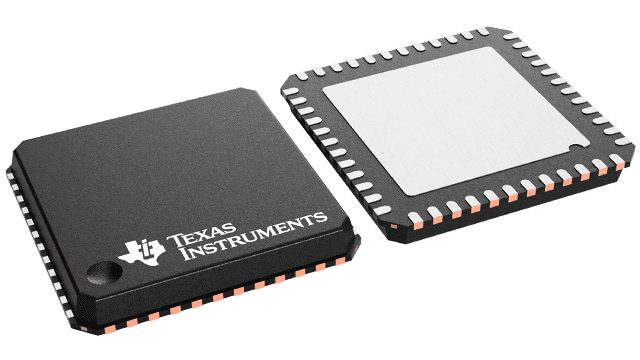

ADS1158IRTCT Texas Instruments - Yeehing Electronics
16-Bit, 125kSPS, 16-Ch Delta-Sigma ADC w/ Fast Channel Scan & Automatic Sequencer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 11.474 |
| 100 — 249 | 10.022 |
| 250 — 999 | 7.728 |
| 1,000 + | 4.84 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS1158 |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-48 |
| Resolution | 16 bit |
| Number of Channels | 8 Channel/16 Channel |
| Sampling Rate | 125 kS/s |
| Input Type | Differential/Single-Ended |
| Interface Type | SPI |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 2.5 V to 3.6 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Reel |
| Features | GPIO, Oscillator |
| Height | 0.9 mm |
| Length | 7 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 42 mW |
| Width | 7 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| INL - Integral Nonlinearity | 1 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | +/- 2.5 V, + 5 V |
| Pd - Power Dissipation | 62 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.003175 oz |
For more information, please refer to datasheet
Documents
| ADS1158IRTCT Datasheet |
More Information
The ADS1158 is a 16-channel (multiplexed), low-noise, 16-bit, delta-sigma (ΔΣ) analog-to-digital converter (ADC) that provides single-cycle settled data at channel scan rates from 1.8k to 23.7k samples per second (SPS) per channel. A flexible input multiplexer accepts combinations of eight differential or 16 single-ended inputs with a full-scale differential range of 5V or true bipolar range of ±2.5V when operating with a 5V reference. The fourth-order delta-sigma modulator is followed by a fifth-order sinc digital filter optimized for low-noise performance.
