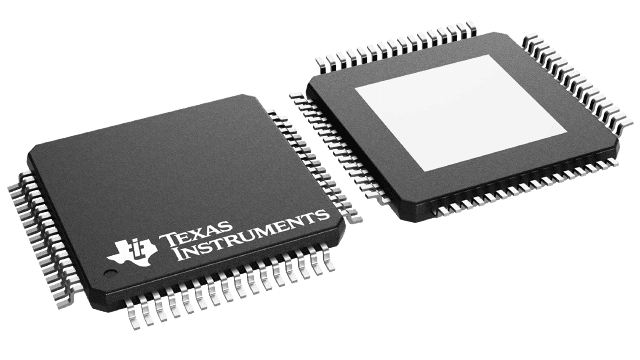

ADS1174IPAPT Texas Instruments - Yeehing Electronics
Quad, Simultaneous Sampling, 16-Bit Analog-to-Digital Converter
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 12.148 |
| 100 — 249 | 10.611 |
| 250 — 999 | 8.182 |
| 1,000 + | 5.12 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS1174 |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-64 |
| Resolution | 16 bit |
| Number of Channels | 4 Channel |
| Sampling Rate | 52 kS/s |
| Input Type | Single-Ended |
| Interface Type | SPI |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 1.65 V to 1.95 V |
| SNR - Signal to Noise Ratio | 97 dB |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Reel |
| Features | Daisy-Chainable |
| Height | 1 mm |
| Length | 10 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 135 mW |
| Width | 10 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| INL - Integral Nonlinearity | +/- 1 LSB |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 1.65 V to 1.95 V, 4.75 V to 5.25 V |
| Pd - Power Dissipation | 210 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.009108 oz |
For more information, please refer to datasheet
Documents
| ADS1174IPAPT Datasheet |
More Information
The ADS1174 (quad) and ADS1178 (octal) are multiple delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with data rates up to 52k samples-per-second (SPS), which allow synchronous sampling of four and eight channels. These devices use identical packages, and are also compatible with the high-performance 24-bit ADS1274 and ADS1278, permitting drop-in upgrades.
