Texas Instruments
ADS1198CZXGR
ADS1198CZXGR
Regular price
$6.24 USD
Regular price
Sale price
$6.24 USD
Unit price
per
Couldn't load pickup availability

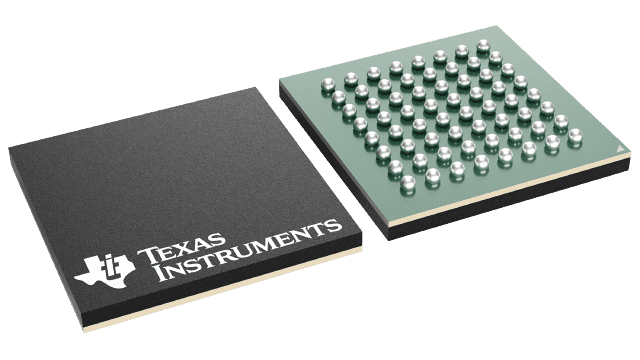

ADS1198CZXGR Texas Instruments - Yeehing Electronics
Low-Noise, 8 Channel, 16 Bit Analog Front End for ECG/EEG Measurements
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 13.632 |
| 100 — 249 | 12.118 |
| 250 — 999 | 9.961 |
| 1,000 + | 6.24 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog Front End - AFE |
| RoHS | Y |
| Series | ADS1198 |
| Resolution | 16 bit |
| Sampling Rate | 8 kS/s |
| Number of Channels | 8 Channel |
| Interface Type | Serial, SPI |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 70 C |
| Mounting Style | SMD/SMT |
| Package / Case | NFBGA-64 |
| Packaging | Reel |
| Features | Daisy-Chainable, GPIO, Oscillator, PGA |
| Input Type | Differential/Single-Ended |
| Number of Converters | 8 Converter |
| Power Consumption | 4.3 mW |
| Architecture | Sigma-Delta |
| Brand | Texas Instruments |
| Reference Type | External, Internal |
| Analog Supply Voltage | 2.7 V to 5.25 V |
| Digital Supply Voltage | 1.65 V to 3.6 V |
| INL - Integral Nonlinearity | 15 ppm |
| Moisture Sensitive | Yes |
| Operating Supply Current | 500 uA |
| Operating Supply Voltage | 2.7 V to 5.25 V |
| Pd - Power Dissipation | 8.2 mW |
| Product Type | Analog Front End - AFE |
| Reference Voltage | 4.1 V |
| SNR - Signal to Noise Ratio | 97 dB |
| Factory Pack Quantity | 1000 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| ADS1198CZXGR Datasheet |
More Information
The ADS1194/6/8 are a family of multichannel, simultaneous sampling, 16-bit, delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with a built-in programmable gain amplifier (PGA), internal reference, and an onboard oscillator.
