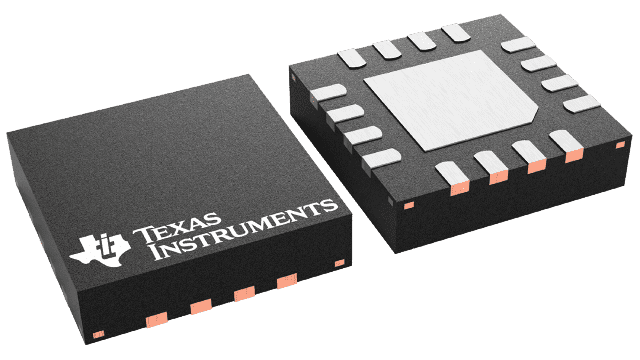

ADS1225IRGVR


YeeHing #: Y004-ADS1225IRGVR
Inventory: 6800

Feel free to reach out to us for more information.
Click the button below to unveil exclusive discounts and delightful surprises.

Description

ADS1225IRGVR Texas Instruments - Yeehing Electronics

24-bit 100-SPS ADC with differential input and internal oscillator

Pricing (USD)

Quantity Unit Price
1 — 99 7.084
100 — 249 5.775
250 — 999 4.539
1,000 + 2.69

The above prices are for reference only.

Specifications

Manufacturer Texas Instruments
Product Category Analog to Digital Converters - ADC
RoHS Y
Series ADS1225
Mounting Style SMD/SMT
Package / Case VQFN-16
Resolution 24 bit
Number of Channels 1 Channel
Sampling Rate 100 S/s
Input Type Differential
Interface Type I2C, SPI
Architecture Sigma-Delta
Reference Type External
Analog Supply Voltage 2.7 V to 5.5 V
Digital Supply Voltage 2.7 V to 5.5 V
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 105 C
Packaging Reel
Features Oscillator, Temp Sensor
Height 0.9 mm
Length 4 mm
Number of Converters 1 Converter
Power Consumption 1.6 mW
Width 4 mm
Brand Texas Instruments
DNL - Differential Nonlinearity +/- 1 LSB
INL - Integral Nonlinearity 0.002 % FSR
Moisture Sensitive Yes
Operating Supply Voltage 2.7 V to 5.25 V
Pd - Power Dissipation 2.5 mW
Product Type ADCs - Analog to Digital Converters
Factory Pack Quantity 2500
Subcategory Data Converter ICs
Unit Weight 0.001623 oz

For more information, please refer to datasheet

Documents

ADS1225IRGVR Datasheet

More Information

The ADS1225 and ADS1226 are 24-bit delta-sigma analog-to-digital (A/D) converters. They offer excellent performance, ease-of-use, and low power in a small 4mm × 4mm QFN package and are well-suited for demanding high-resolution measurements, especially in portable and other space-saving and power-constrained applications.
