Texas Instruments

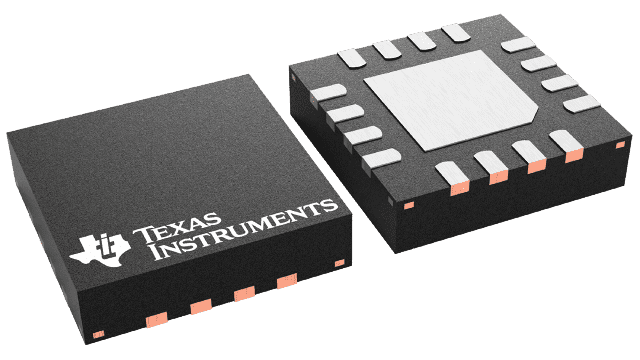

ADS1226IRGVR
ADS1226IRGVR
Regular price
$3.30 USD
Regular price
Sale price
$3.30 USD
Unit price
per
Couldn't load pickup availability
ADS1226IRGVR Texas Instruments - Yeehing Electronics
24-bit ADC with two differential input multiplexers and internal oscillators
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 7.59 |
| 100 — 249 | 6.188 |
| 250 — 999 | 4.863 |
| 1,000 + | 3.30 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS1226 |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-16 |
| Resolution | 24 bit |
| Number of Channels | 2 Channel |
| Sampling Rate | 100 S/s |
| Input Type | Differential |
| Interface Type | I2C, SPI |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Analog Supply Voltage | 2.7 V to 5.5 V |
| Digital Supply Voltage | 2.7 V to 5.5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Reel |
| Features | Oscillator, Temp Sensor |
| Height | 0.9 mm |
| Length | 4 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 1.6 mW |
| Width | 4 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| INL - Integral Nonlinearity | 0.002 % FSR |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 2.7 V to 5.25 V |
| Pd - Power Dissipation | 2.5 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Factory Pack Quantity | 2500 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.001623 oz |
For more information, please refer to datasheet
Documents
| ADS1226IRGVR Datasheet |
More Information
The ADS1225 and ADS1226 are 24-bit delta-sigma analog-to-digital (A/D) converters. They offer excellent performance, ease-of-use, and low power in a small 4mm × 4mm QFN package and are well-suited for demanding high-resolution measurements, especially in portable and other space-saving and power-constrained applications.
