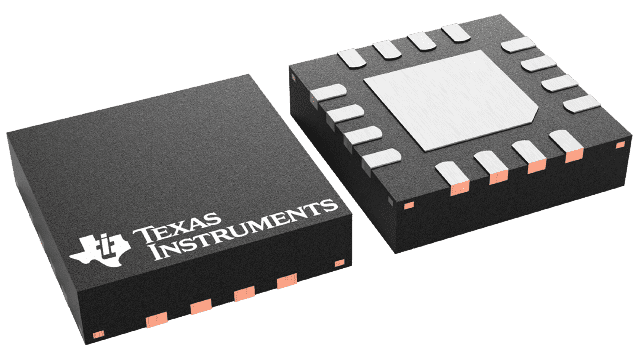

ADS1226IRGVT Texas Instruments - Yeehing Electronics

24-bit ADC with two differential input multiplexers and internal oscillators

Pricing (USD)

Quantity	Unit Price
1 — 99	9.108
100 — 249	7.425
250 — 999	5.836
1,000 +	3.46

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS1226
Mounting Style	SMD/SMT
Package / Case	VQFN-16
Resolution	24 bit
Number of Channels	2 Channel
Sampling Rate	100 S/s
Input Type	Differential
Interface Type	I2C, SPI
Architecture	Sigma-Delta
Reference Type	External
Analog Supply Voltage	2.7 V to 5.5 V
Digital Supply Voltage	2.7 V to 5.5 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Reel
Features	Oscillator, Temp Sensor
Height	0.9 mm
Length	4 mm
Number of Converters	1 Converter
Power Consumption	1.6 mW
Width	4 mm
Brand	Texas Instruments
DNL - Differential Nonlinearity	+/- 1 LSB
INL - Integral Nonlinearity	0.002 % FSR
Moisture Sensitive	Yes
Operating Supply Voltage	2.7 V to 5.25 V
Pd - Power Dissipation	2.5 mW
Product Type	ADCs - Analog to Digital Converters
Reference Voltage	5 V
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.001623 oz

For more information, please refer to datasheet

Documents

ADS1226IRGVT Datasheet

More Information

The ADS1225 and ADS1226 are 24-bit delta-sigma analog-to-digital (A/D) converters. They offer excellent performance, ease-of-use, and low power in a small 4mm × 4mm QFN package and are well-suited for demanding high-resolution measurements, especially in portable and other space-saving and power-constrained applications.
