Texas Instruments
ADS1243SJD
ADS1243SJD
Regular price
$81.46 USD
Regular price
Sale price
$81.46 USD
Unit price
per
Couldn't load pickup availability

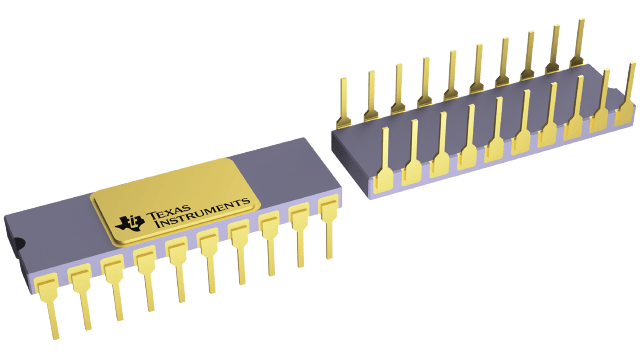

ADS1243SJD Texas Instruments - Yeehing Electronics
High-Temperature 24-Bit ADC, 8-Ch, PGA 1:128, 50/60Hz Notch
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 154.776 |
| 100 — 249 | 150.121 |
| 250 — 999 | 124.985 |
| 1,000 + | 81.46 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS7811 |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-28 |
| Resolution | 16 bit |
| Number of Channels | 1 Channel |
| Sampling Rate | 250 kS/s |
| Input Type | Single-Ended |
| Interface Type | Parallel |
| Architecture | SAR |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 4.75 V to 5.25 V |
| SNR - Signal to Noise Ratio | 87 dB |
| Minimum Operating Temperature | - 25 C |
| Maximum Operating Temperature | + 85 C |
| Packaging | Tube |
| Height | 2.35 mm |
| Length | 18 mm |
| Number of Converters | 1 Converter |
| Width | 7.52 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 2 LSB |
| INL - Integral Nonlinearity | +/- 6 LSB |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 250 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Factory Pack Quantity | 20 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.025778 oz |
For more information, please refer to datasheet
Documents
| ADS1243SJD Datasheet |
More Information
The ADS1243 is a precision, wide dynamic range, delta-sigma, analog-to-digital (A/D) converter with 24-bit resolution operating from 2.7-V to 5.25-V supplies. This delta-sigma, A/D converter provides up to 24 bits of no missing code performance and effective resolution of 21 bits.
