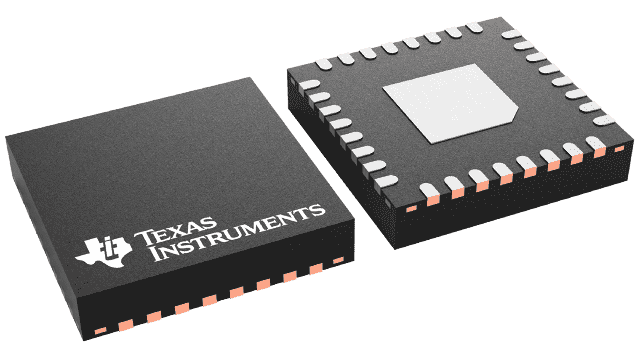

ADS124S08IRHBT Texas Instruments - Yeehing Electronics
24-bit, 4-kSPS, 12-ch delta-sigma ADC with PGA and voltage reference for sensor measurement
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 9.545 |
| 100 — 249 | 8.338 |
| 250 — 999 | 6.429 |
| 1,000 + | 4.02 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS124S08 |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-32 |
| Resolution | 24 bit |
| Number of Channels | 12 Channel |
| Sampling Rate | 4 kS/s |
| Input Type | Differential/Single-Ended |
| Interface Type | SPI |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Analog Supply Voltage | 2.7 V to 5.25 V |
| Digital Supply Voltage | 2.7 V to 3.6 V |
| Minimum Operating Temperature | - 50 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Features | 50/60 Hz Rejection, Excitation Current Sources (iDACs), GPIO, Oscillator, PGA, Temp Sensor |
| Number of Converters | 1 Converter |
| Power Consumption | 1.75 mW |
| Type | Precision ADC |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| Development Kit | ADS124S08EVM |
| Moisture Sensitive | Yes |
| Pd - Power Dissipation | 1.75 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Reference Voltage | 2.5 V |
| Factory Pack Quantity | 250 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.001894 oz |
For more information, please refer to datasheet
Documents
| ADS124S08IRHBT Datasheet |
More Information
The ADS124S06 and ADS124S08 are precision, 24-bit, delta-sigma (ΔΣ), analog-to-digital converters (ADCs) that offer low power consumption and many integrated features to reduce system cost and component count in applications measuring small-signal sensors.
