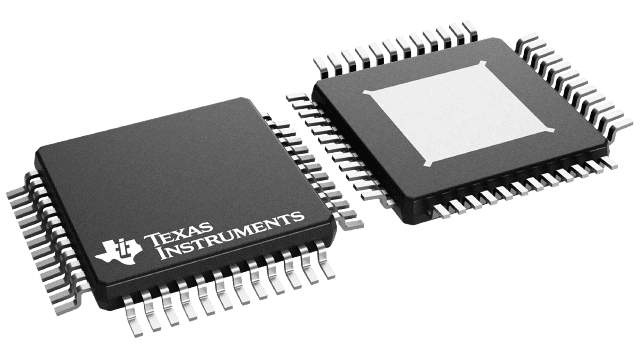

ADS1258IPHPREP Texas Instruments - Yeehing Electronics
Enhanced product 16-channel 24-bit analog-to-digital converter (ADC)
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 27.058 |
| 100 — 249 | 24.052 |
| 250 — 999 | 19.772 |
| 1,000 + | 12.38 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS1258-EP |
| Mounting Style | SMD/SMT |
| Package / Case | HTQFP-48 |
| Resolution | 24 bit |
| Number of Channels | 16 Channel |
| Sampling Rate | 125 kS/s |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 2.7 V to 5.25 V |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Features | GPIO, Oscillator, Temp Sensor |
| Power Consumption | 42 mW |
| Brand | Texas Instruments |
| ENOB - Effective Number of Bits | 21.6 Bit |
| INL - Integral Nonlinearity | 0.0003 % FSR |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | 4.75 V to 5.25 V |
| Product Type | ADCs - Analog to Digital Converters |
| Factory Pack Quantity | 1000 |
| Subcategory | Data Converter ICs |
| Part # Aliases | V62/09626-02XE V62/09626-02YE |
| Unit Weight | 0.004713 oz |
For more information, please refer to datasheet
Documents
| ADS1258IPHPREP Datasheet |
More Information
The ADS1258 is a 16-channel (multiplexed), low-noise, 24-bit, delta-sigma () analog-to-digital converter (ADC) that provides single-cycle settled data at channel scan rates from 1.8k to 23.7k samples per second (SPS) per channel. A flexible input multiplexer accepts combinations of eight differential or 16 single-ended inputs with a full-scale differential range of 5 V or true bipolar range of ±2.5 V when operating with a 5-V reference. The fourth-order delta-sigma modulator is followed by a fifth-order sinc digital filter optimized for low-noise performance.
