Texas Instruments
ADS1258IRTCR
ADS1258IRTCR
Regular price
$7.07 USD
Regular price
Sale price
$7.07 USD
Unit price
per
Couldn't load pickup availability

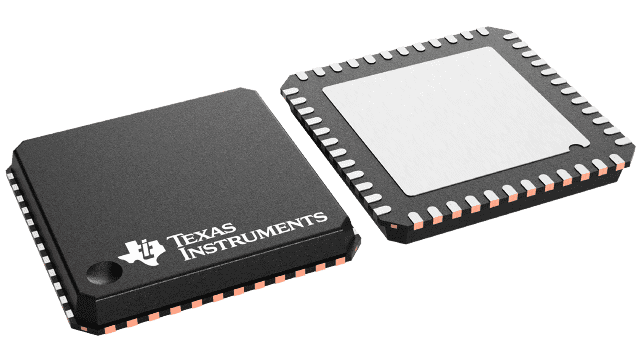

ADS1258IRTCR Texas Instruments - Yeehing Electronics
24-bit, 125kSPS, 16-ch delta-sigma ADC with fast channel scan and automatic sequencer
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 16.776 |
| 100 — 249 | 14.654 |
| 250 — 999 | 11.299 |
| 1,000 + | 7.07 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Series | ADS1258 |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-48 |
| Resolution | 24 bit |
| Number of Channels | 8 Channel/16 Channel |
| Sampling Rate | 125 kS/s |
| Input Type | Differential/Single-Ended |
| Interface Type | SPI |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 2.7 V to 5.25 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Packaging | Reel |
| Features | GPIO, Oscillator |
| Height | 0.9 mm |
| Length | 7 mm |
| Number of Converters | 1 Converter |
| Power Consumption | 42 mW |
| Width | 7 mm |
| Brand | Texas Instruments |
| DNL - Differential Nonlinearity | +/- 1 LSB |
| INL - Integral Nonlinearity | 0.001 % FSR |
| Moisture Sensitive | Yes |
| Operating Supply Voltage | +/- 2.5 V, + 5 V |
| Pd - Power Dissipation | 62 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Factory Pack Quantity | 2500 |
| Subcategory | Data Converter ICs |
| Unit Weight | 0.003175 oz |
For more information, please refer to datasheet
Documents
| ADS1258IRTCR Datasheet |
More Information
The ADS1258 is a 16-channel (multiplexed), low-noise, 24-bit, delta-sigma () analog-to-digital converter (ADC) that provides single-cycle settled data at channel scan rates from 1.8k to 23.7k samples per second (SPS) per channel. A flexible input multiplexer accepts combinations of eight differential or 16 single-ended inputs with a full-scale differential range of 5V or true bipolar range of ±2.5V when operating with a 5V reference. The fourth-order delta-sigma modulator is followed by a fifth-order sinc digital filter optimized for low-noise performance.
