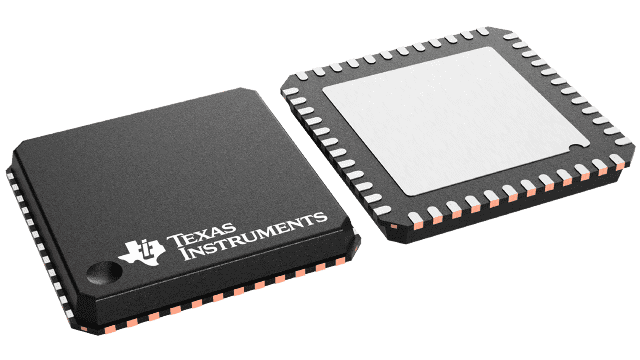

ADS1258IRTCT Texas Instruments - Yeehing Electronics

24-bit, 125kSPS, 16-ch delta-sigma ADC with fast channel scan and automatic sequencer

Pricing (USD)

Quantity	Unit Price
1 — 99	20.096
100 — 249	17.554
250 — 999	13.535
1,000 +	8.47

The above prices are for reference only.

Specifications

Manufacturer	Texas Instruments
Product Category	Analog to Digital Converters - ADC
RoHS	Y
Series	ADS1258
Mounting Style	SMD/SMT
Package / Case	VQFN-48
Resolution	24 bit
Number of Channels	8 Channel/16 Channel
Sampling Rate	125 kS/s
Input Type	Differential/Single-Ended
Interface Type	SPI
Architecture	Sigma-Delta
Reference Type	External
Analog Supply Voltage	4.75 V to 5.25 V
Digital Supply Voltage	2.7 V to 5.25 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 105 C
Packaging	Reel
Features	GPIO, Oscillator
Height	0.9 mm
Length	7 mm
Number of Converters	1 Converter
Power Consumption	42 mW
Width	7 mm
Brand	Texas Instruments
DNL - Differential Nonlinearity	+/- 1 LSB
INL - Integral Nonlinearity	0.001 % FSR
Moisture Sensitive	Yes
Operating Supply Voltage	+/- 2.5 V, + 5 V
Pd - Power Dissipation	42 mW
Product Type	ADCs - Analog to Digital Converters
Reference Voltage	4.096 V
Factory Pack Quantity	250
Subcategory	Data Converter ICs
Unit Weight	0.003175 oz

For more information, please refer to datasheet

Documents

ADS1258IRTCT Datasheet

More Information

The ADS1258 is a 16-channel (multiplexed), low-noise, 24-bit, delta-sigma () analog-to-digital converter (ADC) that provides single-cycle settled data at channel scan rates from 1.8k to 23.7k samples per second (SPS) per channel. A flexible input multiplexer accepts combinations of eight differential or 16 single-ended inputs with a full-scale differential range of 5V or true bipolar range of ±2.5V when operating with a 5V reference. The fourth-order delta-sigma modulator is followed by a fifth-order sinc digital filter optimized for low-noise performance.
