Texas Instruments

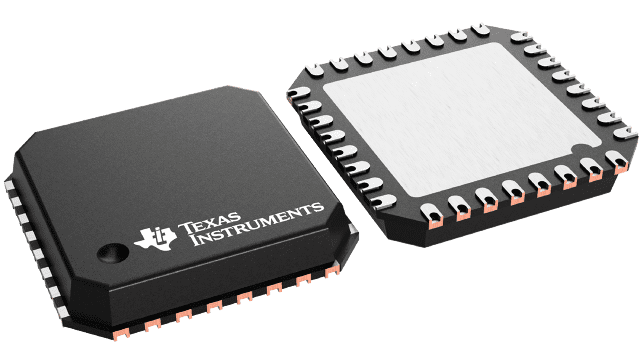

ADS1260BQWRHMRQ1
ADS1260BQWRHMRQ1
Regular price
$24.00 USD
Regular price
Sale price
$24.00 USD
Unit price
per
Couldn't load pickup availability
ADS1260BQWRHMRQ1 Texas Instruments - Yeehing Electronics
Automotive 24-bit, 40-kSPS, 5-ch delta-sigma ADC with PGA, VREF and IDACs
Pricing (USD)
| Quantity | Unit Price |
| 1 — 99 | 12.326 |
| 100 — 249 | 10.766 |
| 250 — 999 | 8.301 |
| 1,000 + | 24.00 |
The above prices are for reference only.
Specifications
| Manufacturer | Texas Instruments |
| Product Category | Analog to Digital Converters - ADC |
| RoHS | Y |
| Mounting Style | SMD/SMT |
| Package / Case | VQFN-32 |
| Resolution | 24 bit |
| Number of Channels | 5 Channel |
| Sampling Rate | 40 kS/s |
| Input Type | Differential/Single-Ended |
| Interface Type | SPI |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Analog Supply Voltage | 4.75 V to 5.25 V |
| Digital Supply Voltage | 2.7 V to 5.25 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Packaging | Reel |
| Features | Excitation Current Sources (iDACs), GPIO, Oscillator, PGA, 50/60 Hz Rejection, Temp Sensor |
| Product | Precision Analog to Digital Converters |
| Type | Delta-Sigma ADC |
| Brand | Texas Instruments |
| Shutdown | No Shutdown |
| Gain Error | +/- 0.05 % |
| Pd - Power Dissipation | 20 mW |
| Product Type | ADCs - Analog to Digital Converters |
| Factory Pack Quantity | 3000 |
| Subcategory | Data Converter ICs |
For more information, please refer to datasheet
Documents
| ADS1260BQWRHMRQ1 Datasheet |
More Information
The ADS1260-Q1 and ADS1261-Q1 (ADS126x-Q1) are precision, 40-kSPS, delta-sigma (ΔΣ) analog-to-digital converters (ADCs) that include a programmable gain amplifier (PGA). The devices also include a precision voltage reference and internal fault monitors. The sensor-ready ADCs give a high-accuracy, single-chip solution for the most demanding measurements, for example, weigh scales and resistance temperature detectors (RTDs).
